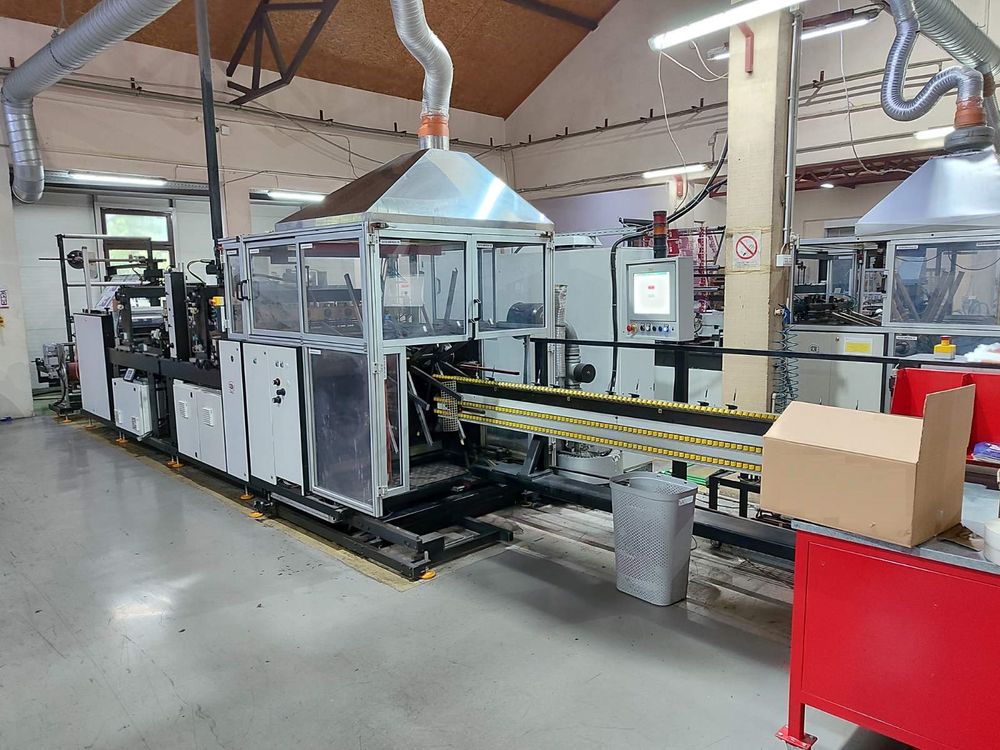

Scae Dimatic ETH 471 HG/110 Plastic welding machines

For the production of wicket bags with die-cut handle positioned on the top or on the side of the bag
Materials: PE (25-70 my), CPP (20-50 my)
Min – max reel width: 750 – 1670 mm
Min – max bag width: 150 – 620 mm
Min – max bag length: 200 – 800 mm
Min – max gusset width: 40 – 180 mm
Wicket holes diameter: 12 mm
Mechanical speed (without film): 300 cycles/min
Line speed: 10 – 110 m/min
Min – max wicket holes distance: 45 – 400 mm
Regular bag perforation width: 90 mm
Max regular bag perforation length: 240 mm
Max Scanpack perforation width: 120 mm
Scanpack perforation length: 200 mm
Die-cut handle: 80×20 mm
Tele-assistance
Servo driven easy-open tear off perforation
Central driven unwinder for main film
Clockwise or anti-clockwise unwinding direction by selector
Pneumatic dancer
Optical sensors for minimum diameter and stop switch for web break and reel end
Ultrasonic sensor for edge guide system (FIFE)
Max reel diameter: 1000 mm
Max unwind width: 1600 mm
Air holes: cross shaped
Diameter of easy opening ripper: 12 mm
Visible in production
Availability: to be confirmed
