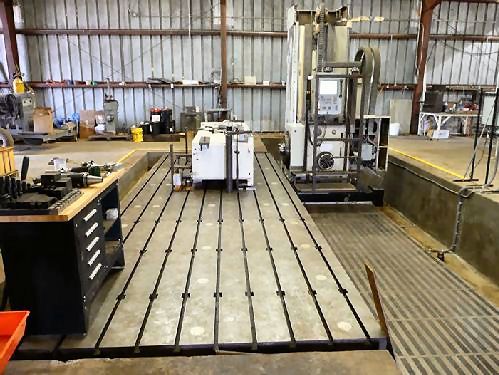

Scharmann WF-132 5.25" 1000 RPM

SCHARMANN WF-132
Rebuilt 2008

Spindle diameter: 5.25"
X-axis travel: 300"
Y-axis travel: 76"
Z-axis travel: 37"
Spindle over bed: 12"
Facing head travel: 8"
Table load capacity: 40,000 lbs
Spindle taper: CAT 50
Spindle speed: 1000 RPM
Spindle motor: 60/30 HP
Machine dimensions (L×W×H): 34' × 15' × 6'
Machine weight: 70,000 lbs
Spindle torque: 5000 lbs

Heidenhain TNC 320 CNC control (2008)
Heidenhain glass scales on all axes (2008)
New lead screw and rack and pinion drive (2008)
Spline re-chromed and re-ground (2008)
Anti-backlash on Z axis
8' × 8' floor plate
17' × 8' floor plate
12' × 4' angle plate (1 of 2)
12' × 4' angle plate (2 of 2)
Scharmann tool presetter
Devlieg Microbore 16-piece boring bar set (CAT 50)
New AC drives (2008)
New AC servos (2008)
New wiring (2008)
New gears (2008)
90° Wotan head, 40 taper, 2:1 ratio
28" facing head
Feed-out facing head holder
34' coolant tank
Machine under power
In superb condition
