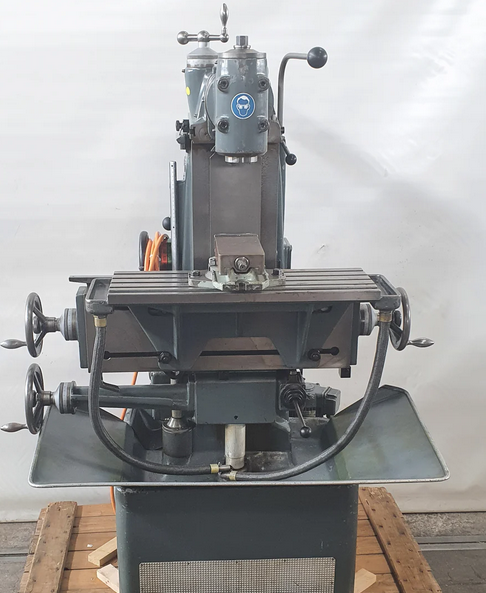

Schaublin 13 2000 rpm

Table length 600 mm
Table width 210 mm
Number of T-slots 4
T-slot width 12 mm
T-slot pitch 40 mm
X-axis travel 260 mm
Y-axis travel 150 mm
Z-axis travel 310 mm
Distance vertical spindle to table 310 mm
Distance horizontal spindle to table 410 mm
Spindle taper ISO 30
Spindle speed 58 - 2000 rpm
Stepless spindle speeds
Feed steps 10
Longitudinal feed 12 - 400 mm/min
Vertical feed 12 - 400 mm/min
Rapid traverse longitudinal 1.2 m/min
Rapid traverse vertical 1.2 m/min
Motor output 2.0 CV
Total power required 3 CV
Voltage 380 V / 50 Hz / 3 Phase
Vice
Rigid table
Machine dimensions 1500 x 1100 x 1600 mm
Machine weight 700 kg
