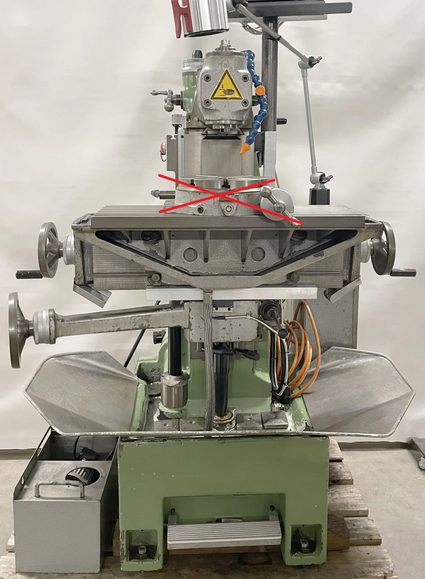

Schaublin 13 Variable Speed

Table Length: 630 mm
Table Width: 200 mm
Number of T-Slots: 5
T-Slot Width: 12H7 mm
Distance of T-Slots: 120 mm
Longitudinal Travel (X-Axis): 320 mm
Transversal Travel (Y-Axis): 150 mm
Vertical Travel (Z-Axis): 375 mm
Distance from Vertical Spindle to Table: 310 mm
Distance from Horizontal Spindle to Table: 410 mm
Spindle Speeds: Stepless 58 t/min – 2000 t/min
Spindle Taper: ISO 40
Feeds Steps: 10
Longitudinal Feed: 12–400 mm/min
Vertical Feed: 12–400 mm/min
Rapid Traverse: 1 m/min
Voltage: 3x 380 V 50 Hz
Motor Output: 2 CV
Machine Weight: 700 kg
Overall Length: 1500 mm
Overall Width: 1100 mm
Overall Height: 1600 mm
3-Axis Digital Readout
Coolant System
Steady
Lamp
Chip Tray
