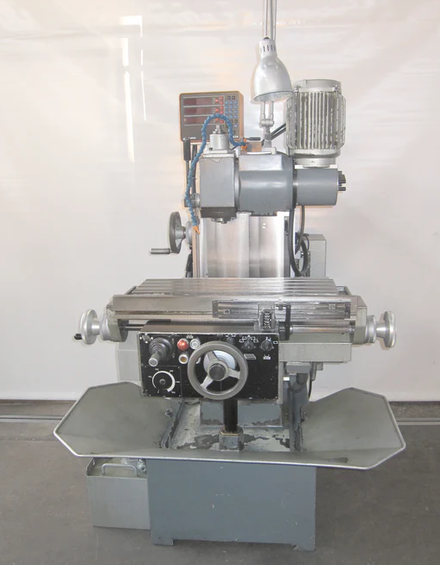

Schaublin 22 Vertical 2800 rpm

Ref : 2809346-3-CP

Condition : Used

Manufacturer : Schaublin

Model : 22

Type : Vertical

Spindle Speed : 2800 rpm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Axis travel X: 330 mm
Axis travel Y: 400 mm
Axis travel Z: 475 mm
Rapid traverse X: 2.5 m/min
Rapid traverse Z: 1.0 m/min
Table size: 650 × 250 mm
Spindle taper: ISO 30
Spindle speed: 63–2800 rpm
12 spindle speeds
Longitudinal feed: 4–500 mm/min
Vertical feed: 2–200 mm/min
Quill travel: 60 mm
Motor power: 2.2 CV
3-axis digital readout
Positioning and travel control
Coolant system
Work light
Chip tray
Electrical: 380 V, 50 Hz, 3-phase
Machine dimensions: 1600 × 1100 × 1650 mm
Machine weight: approx. 950 kg
