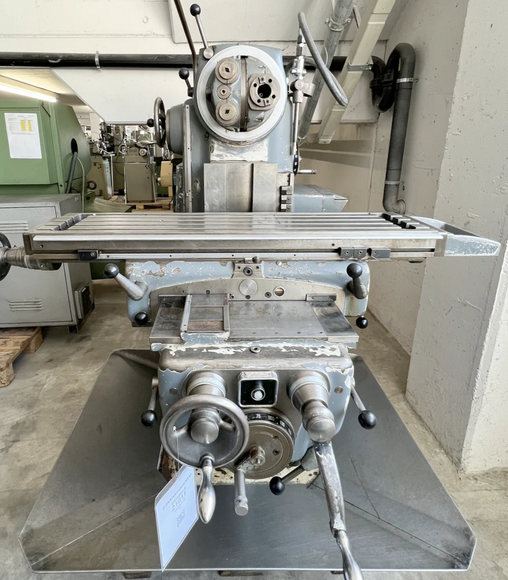

Schaublin 53 1050 rpm

X-Axis Travel: 700 mm
Y-Axis Travel: 250 mm
Z-Axis Travel: 490 mm
Rapid Traverse X-Axis: 3.5 m/min
Rapid Traverse Y-Axis: 3.5 m/min
Rapid Traverse Z-Axis: 1.7 m/min
Table Size: 1100 x 255 mm
5 T-Slots
T-Slot Width: 14h7 mm
T-Slot Distance: 50 mm
Spindle Speeds: 12 - 1050 rpm
18 Spindle Speeds
Spindle Taper: ISO 40
Longitudinal Feed Rate: 12 - 1050 mm/min
Transversal Feed Rate: 12 - 1050 mm/min
Vertical Feed Rate: 6 - 525 mm/min
18 Feed Steps
Motor Power: 5.5 CV
Total Power Required: 8 CV
Voltage: 3x380 V / 50 Hz
Machine Weight: 2100 kg
Machine Dimensions: 1600 x 1600 x 1600 mm
Chip Tray
