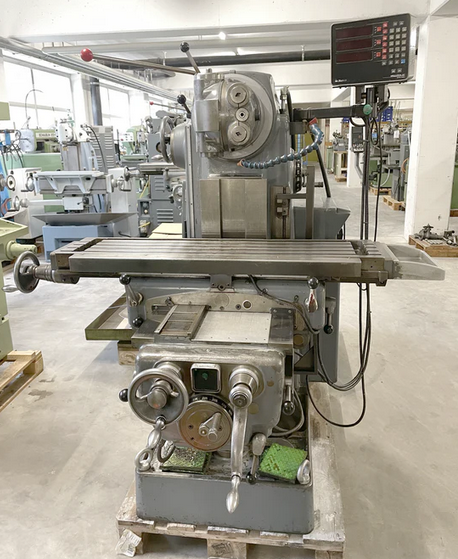

Schaublin 53 1510 t/min

Table length 1100 mm
Table width 305 mm
Longitudinal travel (X-axis) 700 mm
Transversal travel (Y-axis) 250 mm
Vertical travel (Z-axis) 490 mm
Spindle speeds 38–1510 t/min
Spindle steps 18
Taper in spindle 40 ISO
Feeds longitudinal 12–1000 mm/min
Feeds transversal 12–1000 mm/min
Feeds vertical 6–500 mm/min
Rapid traverse longitudinal 3.5 m/min
Rapid traverse transversal 3.5 m/min
Rapid traverse vertical 1.8 m/min
Voltage 50 Hz 3x380 V
Motor output 4.0 CV
Total power 5 CV
Weight 1900 kg
Overall dimensions Length 1800 mm
Overall dimensions Width 1600 mm
Overall dimensions Height 1900 mm
Digital readout 3 axes
