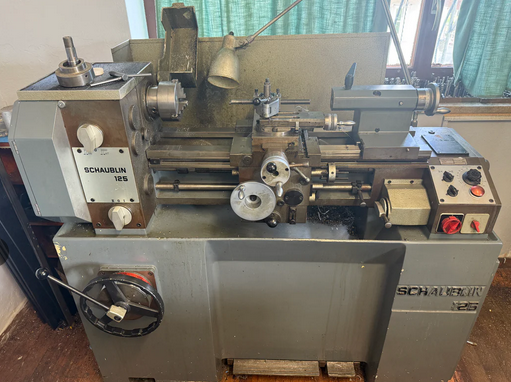

Schaublin Engine Lathe 3,000 t/min 125 B
Ref :
2776932-3-MT
Condition :
Used
Manufacturer :
Schaublin
Type :
Engine Lathe
Spindle Speed :
3,000 t/min
Model :
125 B
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Centre height: 125 mm
Distance between centres: 500 mm
Swing over cross-slide: 52 mm
Swing over bed: 270 mm
Spindle hole: 28 mm
Spindle nose for collets: W25
Taper in spindle: Camlock
Taper in spindle: Thread
Spindle speeds: stepless 200–3,000 t/min
Pitch of leadscrew: 4 mm
Taper in tailstock: 3 CM
Longitudinal feed: 0.25–8 mm/t
Frontal feed: 0.25–8 mm/t
Voltage: 3x380 V, 50 Hz
Spindle motor: 2.3 CV
Total power: 3 CV
Weight: 990 kg
Overall dimensions L x W x H: 1700 x 850 x 1280 mm
Accessories: MULTIFIX toolholders
Accessories: Lamp
