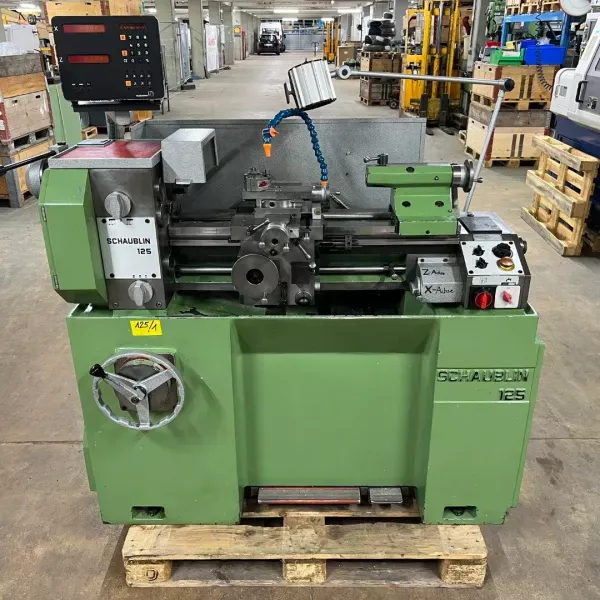

Schaublin Engine Lathe 3000 rpm 125 B

Center Height: 125 mm
Center Width: 500 mm
Max Workpiece Diameter Over Bed: 270 mm
Max Workpiece Diameter Over Cross Slide: 120 mm
Spindle Speed Range: 225–3000 rpm
Spindle Nose: Camlock D1-3
Spindle Bore: 32 mm
Collets: B32
Collet Passage: 24 mm
Chuck Passage: 28 mm
Cross Slide Travel: 440 mm
Tool Carriage Travel: 90 mm
Cross Slide Path: 130 mm
Center Height Above Tool Slide: 20 mm
Tool Section: 12 x 12 mm
Tailstock Quill Taper: Morse 2
Tailstock Quill Travel: 100 mm
Automatic Feeds Longitudinal/Transverse: 4–260 mm/min
Lead Screw Pitch: 4 mm
Motor Speed: 500 / 1500 rpm
Motor Power: 0.75 / 2.5 CV
Weight: 930 kg
Space Requirement (LxWxH): 1473 x 730 x 1280 mm
Metric Threads: 0.25–8 mm
Inch Threads: 112–3 G/1''

Drawer Unit
Tool
Multifix Tool Holder
3-Jaw Chuck
4-Jaw Chuck
Drill Heads
Centering Tip
Change Gear Set
Documentation
