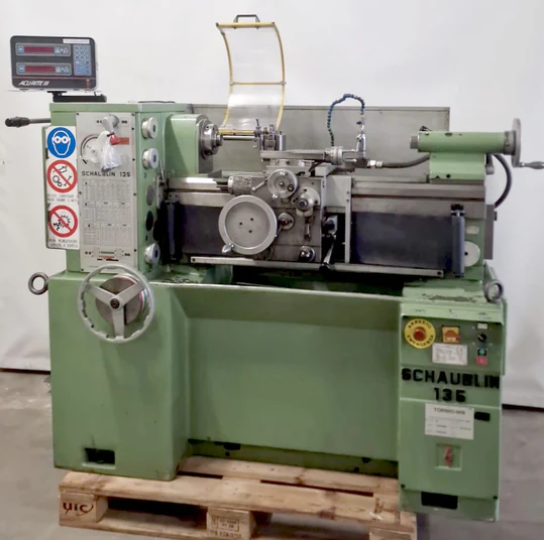

Schaublin Engine Lathe 3000 rpm 135

Ref : 2774951-3-MT

Condition : Used

Manufacturer : Schaublin

Type : Engine Lathe

Spindle Speed : 3000 rpm

Model : 135

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Center Height: 135 mm
Distance Between Centers: 630 mm
Swing Over Bed: 315 mm
Swing Over Cross Slide: 150 mm
Spindle Bore: 40 mm
Spindle Nose for Collets: B32
Spindle Speed Range: 55–3000 rpm
Spindle Motor Power: 4.00 CV
Total Power Requirement: 6 CV
Tailstock Taper: CM 3
Number of Feeds: 24
Longitudinal Feed Range: from 0.015 mm/rev
Cross Feed Range: from 0.015 mm/rev
Machine Length: 1700 mm
Machine Width: 850 mm
Machine Height: 1280 mm
Machine Weight: 1400 kg

Features / Equipment
2-axis digital readout
3-jaw chuck 150 mm
3-jaw chuck 160 mm
Quick-closing attachment
Set of toolholders
Set of collets
Set of centers
Drilling tailstock
Chip protector
