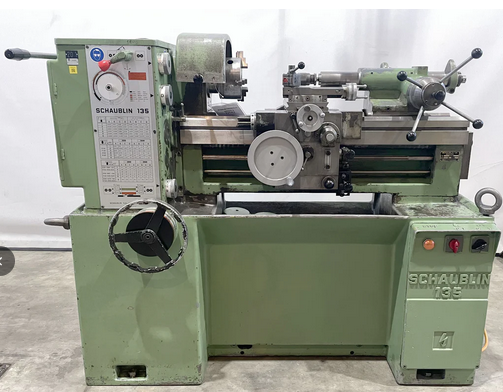

Schaublin Engine Lathe 3000 rpm 135

X-axis travel 180 mm
Z-axis travel 650 mm
Distance between centers 630 mm
Center height 135 mm
Swing over cross-slide 150 mm
Swing over bed 355 mm
Spindle bore 40 mm
Tailstock stroke 120 mm
Number of feed steps 24
Longitudinal feed from 0.015 mm/rev
Cross feed from 0.015 mm/rev
Spindle taper MK5
Spindle nose Camlock D1-4
Spindle speed range 55–3000 rpm
Spindle motor power 4 CV
Tailstock taper CM3
Operating voltage 380 V / 50 Hz / 3-phase
Machine length 1715 mm
Machine width 970 mm
Machine height 1280 mm
Machine weight approx. 1300 kg
3-jaw chuck
Quick-closing attachment
Quick-change toolholder MULTIFIX
Drill chuck
Starwheel-operated tailstock
Chuck protection guard
