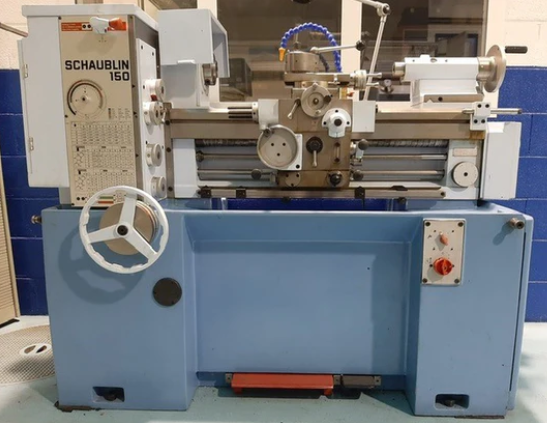

Schaublin Engine Lathe 3000 rpm 150

Turning length: 600 mm
Turning diameter over bed: 340 mm
Turning diameter over cross slide: 177 mm
Centre height: 150 mm
Distance between centres: 600 mm
Spindle bore: 40 mm
Spindle speed: 55–3000 rpm
Spindle motor power: 2.70 CV
Spindle nose: B32
Camlock: D1-4
Spindle diameter: 60 mm
Tailstock taper: MT5
Longitudinal feed: 0.015 mm/rev
Cross feed: 0.015 mm/rev
Feed steps: 48
Rapid traverse: 4 m/min
Power supply: 380 V, 3-phase, 50 Hz
Total power: 6 CV
Machine length: 1730 mm
Machine width: 970 mm
Machine height: 1300 mm
Machine weight: 1250 kg
3-jaw chuck
Coolant system
Quick closing attachment
MULTIFIX quick-change toolholder
Set of tool holders
Lamp
Drilling tailstock
