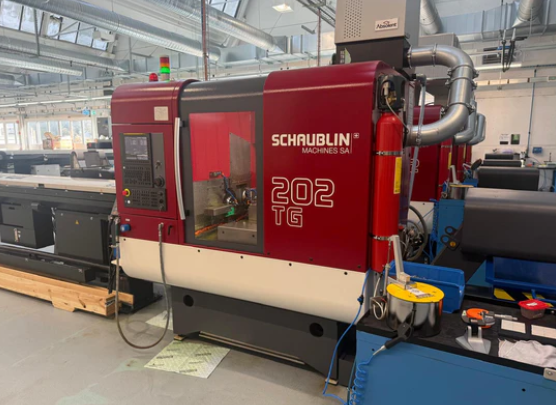

Schaublin FANUC 0i-TF PLUS 7,000 rpm 202 TG-CNC W25-0127 2 Axis
Ref :
2809237-3-CP
Condition :
Used
Manufacturer :
Schaublin
Controller :
FANUC 0i-TF PLUS
Spindle Speed :
7,000 rpm
Model :
202 TG-CNC W25-0127
Nb Of Axis :
2 Axis
Year(s) :
2019
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Z-Axis Travel: 300 mm
X-Axis Travel: 150 mm
Rapid Traverse X: 20 m/min
Rapid Traverse Z: 20 m/min
C-Axis Resolution: 0.0001°
CNC Control: FANUC 0i-TF PLUS
Coolant System
Ethernet Interface
Chip Conveyor
Parts Catcher
LNS Express 112+ Loader
Rinsing Guns
Fire Extinguishing System
Collet Bore: 19 mm
Inner Taper: W25
Spindle Speed: 7,000 rpm
Spindle Power: 5 / 6 kW
Maximum Torque: 26.1 / 35.1 Nm
Fixed Tool Positions: 6
Driven Tool Positions: 6
Resolution: 0.0001 mm
Power Supply: 3 × 400 V, 50 Hz
Machine Dimensions: 1930 × 1300 × 2040 mm
Machine Weight: Approx. 3,000 kg
