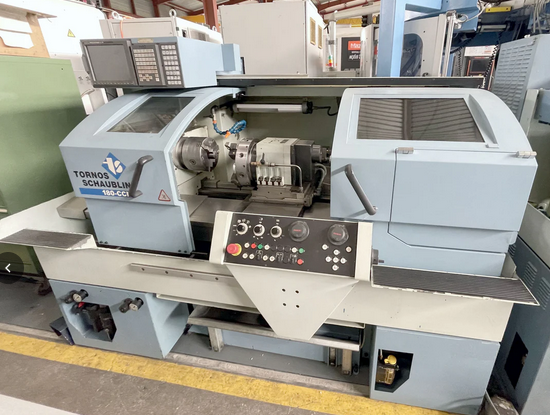

Schaublin GE FANUC Series 18i control 4000 rpm 180 CCN R-T 2 Axis

Z-axis travel 672 mm
X-axis travel 230 mm
C-axis resolution 0.001°
GE FANUC Series 18i control
Bar passage 60 mm
Centre height 275 mm
Distance between centres 600 mm
Swing over cross-slide 150 mm
Swing over bed 600 mm
Maximum turning length 630 mm
Spindle speed 30 - 4000 rpm
Spindle bore 60 mm
Spindle motor 15 / 18.5 kW
Camlock A2-6
Feeds 0 - 5000 mm/min
Rapid traverse X-axis 8 m/min
Rapid traverse Y-axis 10 m/min
12-position turret
12 fixed tools
VDI 30
20 x 20 mm tool size
3-jaw chuck 170 mm
3-jaw chuck 200 mm
4-jaw chuck 200 mm
Set of soft jaws
Set of hard jaws
Travelling steady
Fixed steady
Collet device
Set of collets B45
Starwheel-operated tailstock
Lamp
Tool cabinet
Centering microscope
Set of centers
Rotary centre
RS232 interface
Foot pedal
Set of tools
Set of steel holders
Toolholders
Set of toolholders
Air connection 5 - 7 bar
Cooling water pump flow rate 10 l/min
Voltage 3x400 V 50 Hz
Noise level 75 dB(A)
Total power 24 kVA
Machine weight 2460 kg
Machine dimensions 2301 x 1460 x 1676 mm
