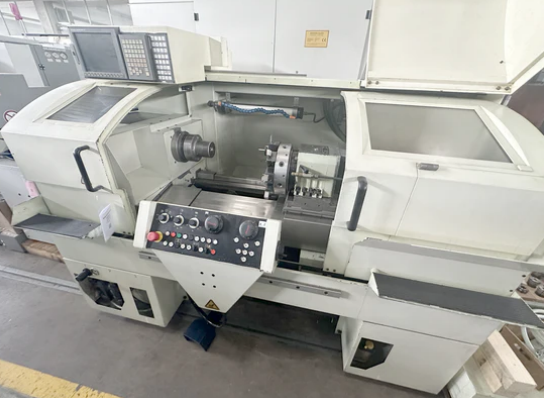

Schaublin GE Fanuc Series 18i-T 4,000 t/min 180 CCN R-T 2 Axis

X-Axis Travel 230 mm
Z-Axis Travel 672 mm
Centre Height 275 mm
Distance Between Centres 600 mm
Swing Over Bed 600 mm
Swing Over Cross-Slide 150 mm
Maximum Turning Length 630 mm
Bar Passage 60 mm
Spindle Speed 30–4,000 t/min
Internal Spindle Diameter 60 mm
Spindle Motor 15 / 18.5 kW
Rapid Traverse X 8 m/min
Rapid Traverse Y 10 m/min
Feedrates 0–5,000 mm/min
Control GE Fanuc Series 18i-T
Voltage 3x400 V 50 Hz
Total Power 24 kVA
Cooling Pump Flow Rate 10 l/min
Air Supply 5–7 bar
Noise Level 75 dB(A)
Machine Weight 2,460 kg
Machine Dimensions L2301 × W1460 × H1676 mm
Turret SAUTER 8-position VDI30 20×20
Camlock A2-6
Collet Type F48
3-Jaw Chuck Ø250 mm
Collet Set
Lamp
Tailstock with Starwheel
Coolant System
Foot Pedal
Toolholder Sets
Steel Holder Sets
