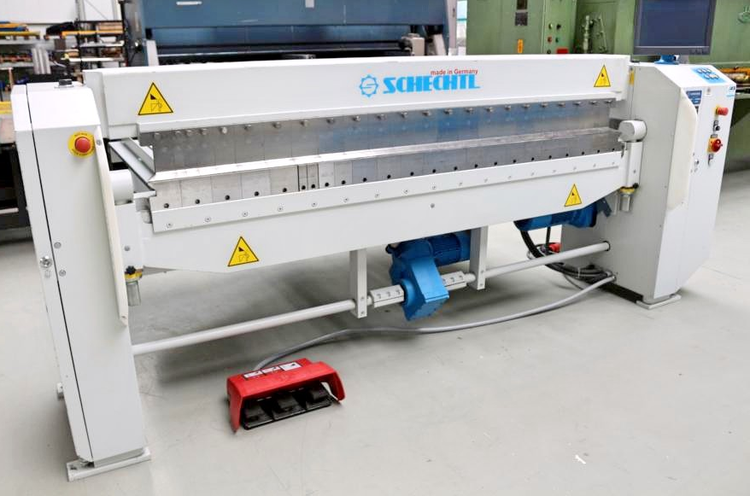

Schechtl MAXI 200/CNC

SCHECHTL MAXI 200/CNC
2010

Sheet width 2040 mm
Plate thickness (steel) 1.5 mm
Plate thickness (aluminum) 3.5 mm
Plate thickness (stainless steel) 1.5 mm
Upper beam stroke max 240 mm
Backgauge adjustment range max 1000 mm
Max working height 865 mm
Control CNC Touch
Voltage 400 V
Total power requirement 2.0 kW
Machine weight 1720 kg
Machine dimensions (L x W x H) 3250 x 1790 x 1425 mm
CNC motorized universal folding machine
High-precision mechanics with modern control system
Robust high-speed design with fast axis movement
Torsion-resistant welded frame
SCHECHTL CNC TOUCH control panel
Touch panel positioned front right
Graphical bending process display
Accurate bending simulation
Integrated material and tool library
Freely nameable programs
Color screen display
Additional control panel with control cabinet
CNC motorized backgauge with rear sheet support
Manual lower beam adjustment
Freely movable triple foot switch
Two emergency stop buttons at front
Split set of goat’s foot rails, height 150 mm
Upper beam click system for goat’s foot rails
Split set of lower tools, height 90/130 mm
Machine in very good condition
Machine video available online
Ideal for repeat one-off production and small series
Smooth operation by one person
Consistent bend quality regardless of operator
