Schechtl MT 150

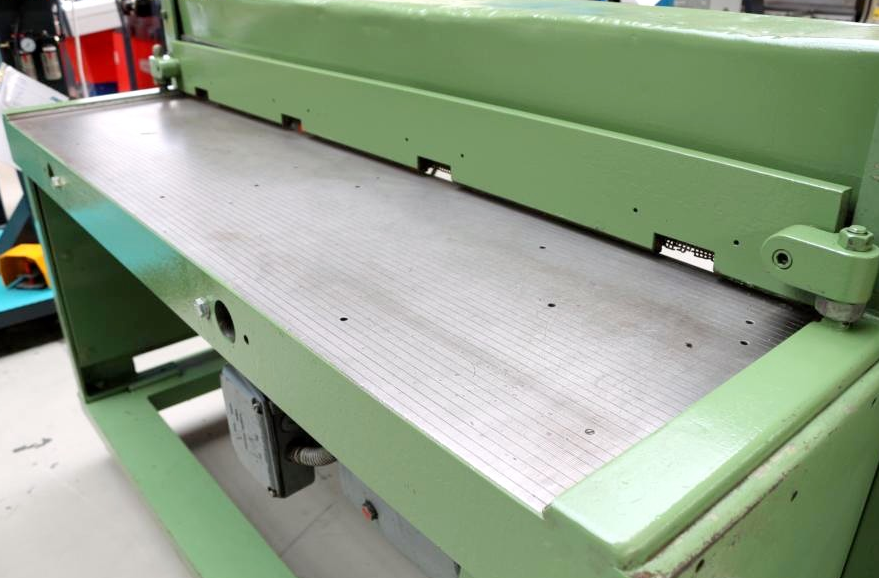

SCHECHTL MT 150
1974

Technical data:
Sheet width: 1540 mm
Plate thickness: 2.00 mm
Stainless steel thickness: 1.25 mm
Number of strokes: max. 45 strokes/min
Cutting angle: 2.97°
Distance between columns: 1580 mm
Max. working height: 945 mm
Back stop (manual, adjustable): max. 500 mm
Voltage: 400 V
Motor power: 2.2 kW
Weight: approx. 800 kg
Dimensions (L×W×H): 1750 × 1400 × 1500 mm

Features:
Motorized crank guillotine shear
Torsion-free steel welded frame
Manual back stop with analog display
Continuously adjustable travel range up to 550 mm
Hold-down bar
Side stop
Front support arm
Original operating instructions included
