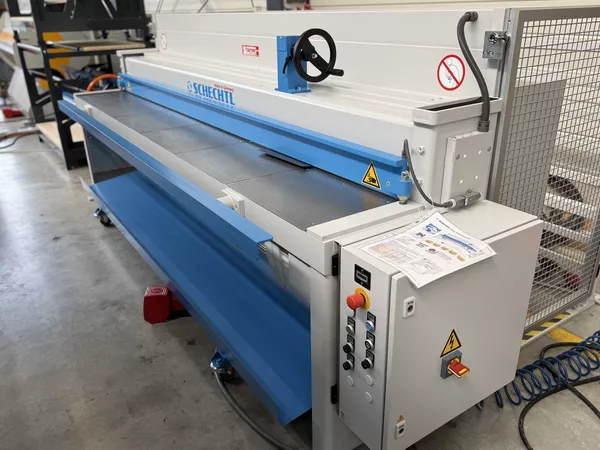

Schechtl SMT 310 BV

Working length: 3140 mm
Max steel sheet thickness: 1.50 mm
Max aluminum sheet thickness: 2.25 mm
Max stainless steel sheet thickness: 1.00 mm
Overall dimensions: 3500 x 1920 x 1500 mm
Total power requirement: 3 kW
Stroke rate: 35 strokes/min
Weight: 1520 kg
Back gauge max: 750 mm
Back gauge min: 0 mm
Gap adjustment: yes
Angle adjustment with gauge: yes
Control: BV control
Cutting gap illumination: yes
Electronic position display: yes
Contact stroke counter: tico 731.3
Manual depth stop: 0–750 mm
Pneumatic tilting table: yes
Support plates with 10 mm scale and ruler: yes
Foot switch: yes
Three-sided safety cage for depth stop: yes
Steel shear blades, single-edged: 1 pair
Light sheet stack trolley, max load 300 kg: yes
Air pressure required: min 6 bar, max 10 bar
Air consumption: approx. 50 l/min
EU power plug: 32 A with 5 m cable
