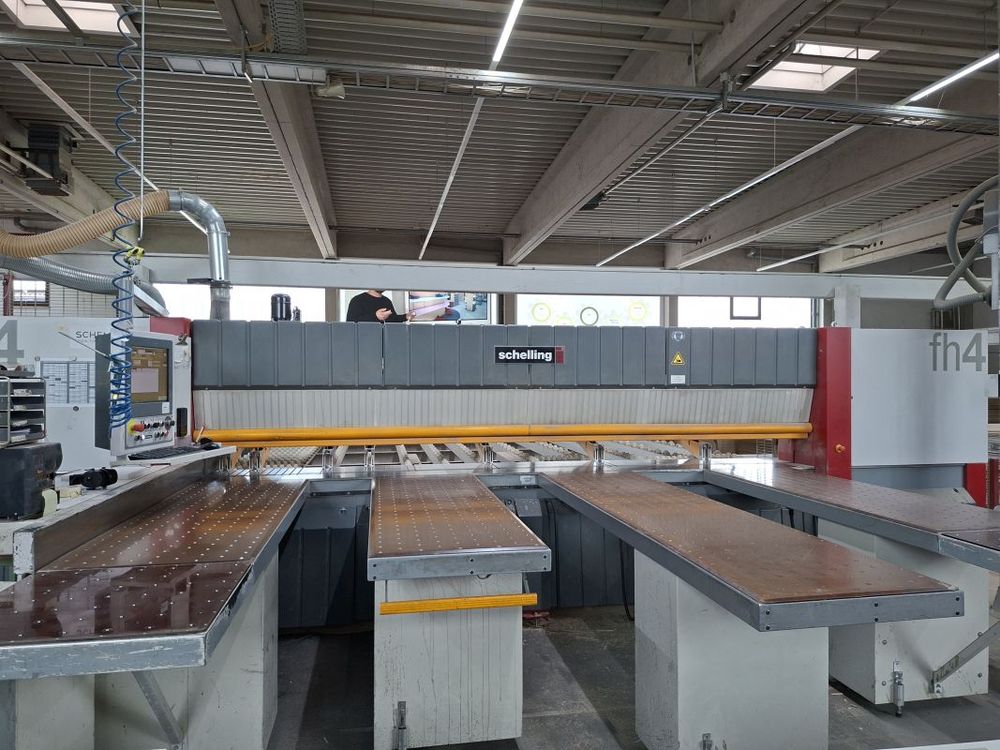

Schelling FH 4

Panel cutting saw with Plate storage
Technical Specifications :
Panel Dimensions :
- Length: 2000 - 4100 mm
- Width: 300 - 2100 mm
- Thickness: 6 - 60 mm
- Panel thickness tolerance: -0.2 - 0.2 mm

Machine Specifications :
- Nominal cutting length for Saw Machine 430: 4250 mm
- Saw blade diameter max.: 350 mm
- Scoring saw blade diameter: 300 mm
- Max. saw blade clearance above table: 95 mm
- Max. package height: 80 mm
- Min. alignment force of strip aligner: 400 N/piece
- Max. alignment force of strip aligner: 2000 N/piece
- Max. clamp opening: 90 mm
- Working height: 970 mm
- Overall height: 2070 mm

Main saw :
- Main saw motor power: 15 kW
- Saw unit feed speed (forward): 5 - 120 m/min
- Saw unit feed speed (reverse): 120 m/min
- Feed speed (forward): up to 80 m/min
- Feed speed (reverse): up to 80 m/min
- Scoring saw

ARDIS software package

Panel storage
Manufacturer: Grundner
Technical specifications :
- Length: 24.90 m
- Width: 14.17 m
- Stack height: 2 m
- Lifting height: 2.10 m
- Max. panel size L/W: 4.20 x 2.10 m
- Min. panel size L/W: 1.80 x 0.60 m
- Max. lifting capacity: 250 kg
- Horizontal drive power: 2.2 kW
- Horizontal travel speed: approx. 120 m/min
- Vertical travel speed: approx. 40 m/min
- Panel material: suitable for vacuum gripping technology
- Connected load: 6 kW
