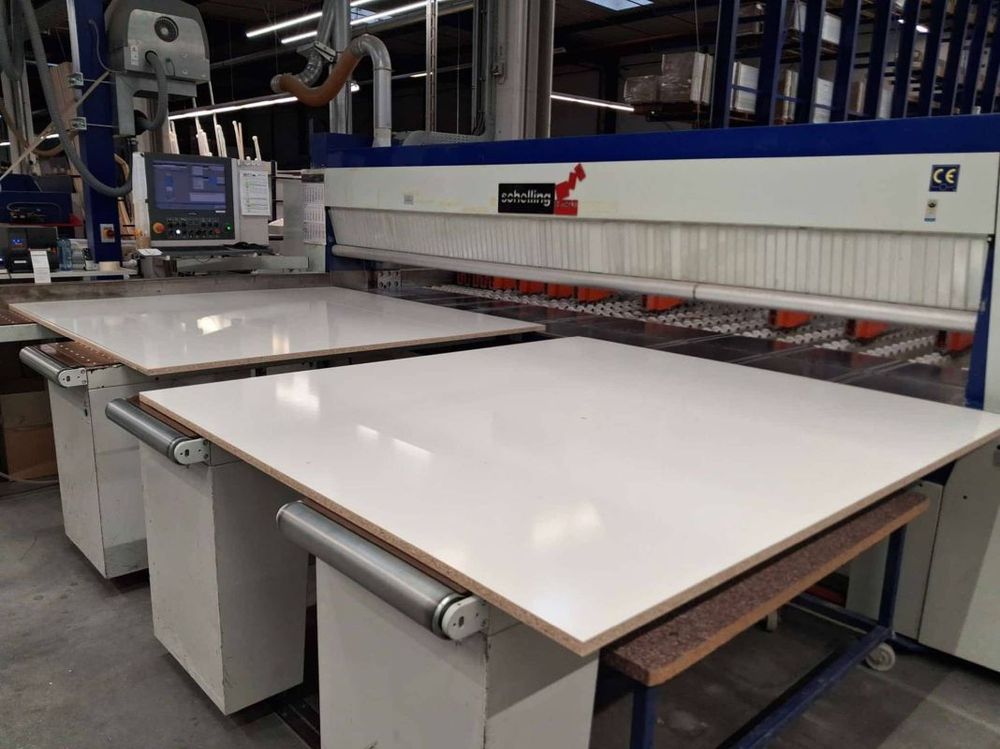

Schelling FM-H 430

Technical data:
Feed speed
Forward: 0-25 m/min
Reverse: 80 m/min

Saw feed speed:
Forward: up to 120 m/min
Reverse: 120 m/min

Saw motor: up to 19 kW at 2930 rpm, 50 Hz
Scoring motor: 1.5 kW at 2830 rpm, 50 Hz
Clamp opening: 113 mm
Cutting straightness: +/- 0.1 mm over a cutting length of 3 m
Dimensional accuracy: +/- 0.2 mm length, +/- 0.2 mm width, +/- 0.3 mm diagonal

Main saw blade:
Diameter: 450 mm
Bore diameter: 30 mm
Saw blade thickness: 4.4 mm
Number of teeth: 72

Scoring blade:
Diameter: 200 mm
Bore diameter: 20 mm
Saw blade thickness: 4.2 / 3.5 mm
Number of teeth: 36

Edge scoring blade:
Diameter: 220 mm
Bore diameter: 20 mm
Saw blade thickness: 4 / 4.8 mm
Number of teeth: 2 x 24
