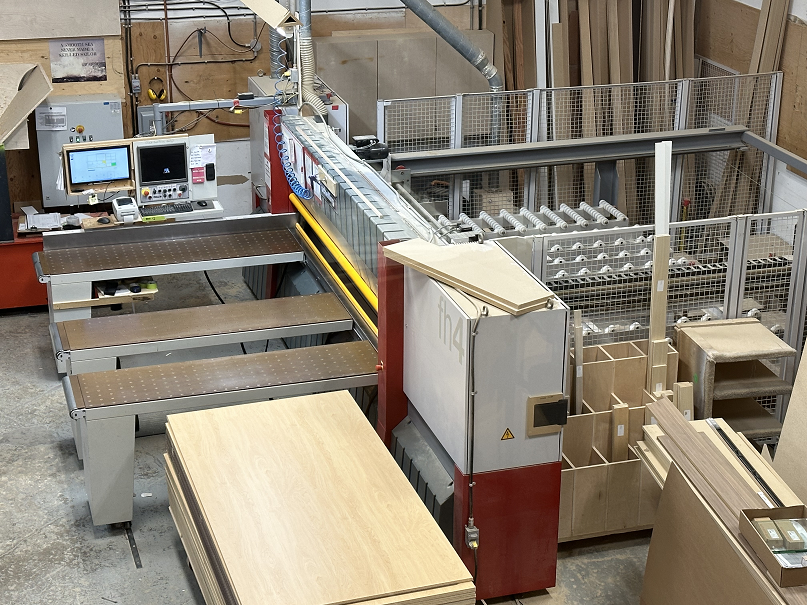

Schelling FH4 330-310

Installed date Sep-08
Machine hours 9290

Features :
Here Over all Depth with table 6810mm
Over all Width 6352mm
Support tables 600x2200 air flotation tables 1 stationary 2 movable
Main Motor Power 17kW
Saw carriage speed
Variable saw carriage travel speed from 16
- 525 FPM (5
- 160 MPM), constant return of 525 FPM (160 MPM).
Saw blade projection 75mm max cut
Feeder carriage
Rack and Pinion Saw travel Rack and Pinion
Voltage 480V

Included Options :
Saw blade quick change Yes
Grooving program Yes
Cooling Unit for electrical cabinets
Fan Saw software MCS Evolution, Windows XP Side aligners
Strip Aligner x2 Pusher fence (11) material gripper clamps with double clamping fingers
Scoring saw Electronic scorer adjustment, from the machine control
Display 19" Color screen displays cutting dimensions & patterns with "REAL TIME" moving graphics, self-diagnostic, data input by keyboard or direct downloading from office PC.
Tooling Includes 10+ sets of Combination and hardwood rip blades
Manuals Includes original manuals and documentation
