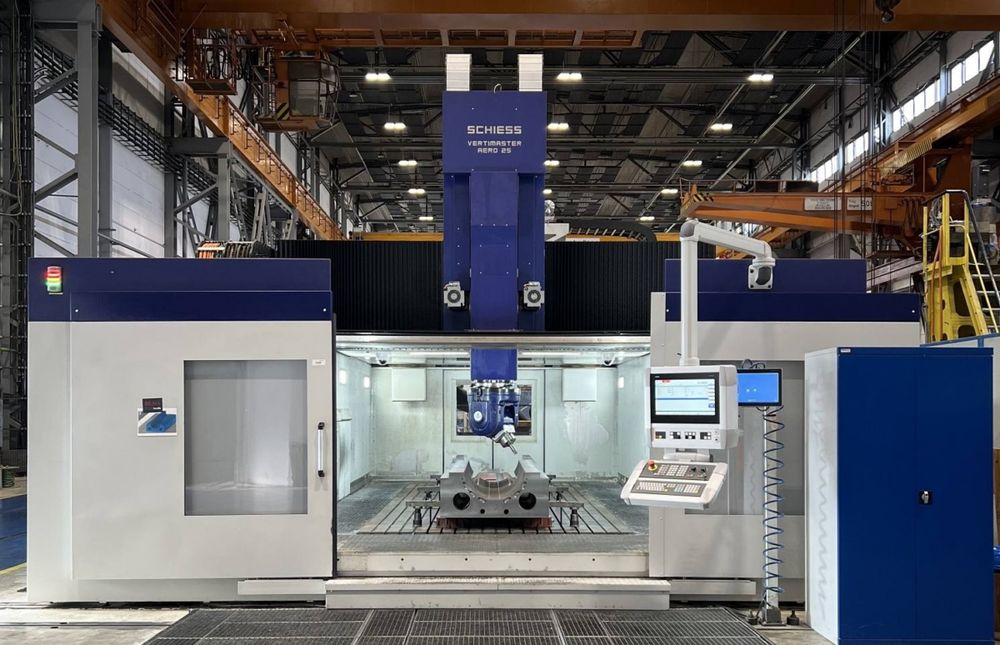

Schiess ASCHERSLEBEN VERTIMASTER AERO 25V 24,000 rpm

X-axis travel: 5850 mm
Y-axis travel: 2500 mm
Z-axis travel: 1000 mm
C-axis swivel range: ±360°
C-axis feed: 50 min⁻¹
C-axis acceleration: 50 rad/s²
C-axis holding torque: 1400 Nm
C-axis clamping torque: 4000 Nm
A-axis swivel range: ±100°
A-axis feed: 50 min⁻¹
A-axis acceleration: 50 rad/s²
A-axis holding torque: 1400 Nm
A-axis clamping torque: 4000 Nm

Rapid traverse rate X/Y/Z: 45 m/min
Feed rate X/Y/Z: 20 m/min
Acceleration: 5 m/s²

CNC control
Siemens 840D sl control
Spindle motor power: 60 kW
Spindle speed range: up to 24,000 rpm
Maximum spindle torque: 87 Nm

Tool taper: HSK-A63 / F80
Tool changer capacity: 20 tools
Table surface area: 6000 x 2500 mm

Number of T-slots: 20
T-slot spacing: 125 mm
T-slot size: 18 H8 mm
Maximum table load: 8000 kg

Coolant tank capacity: 2300 l
Chip conveyor

Machine dimensions: 14.8 x 7.3 x 5.8 m
