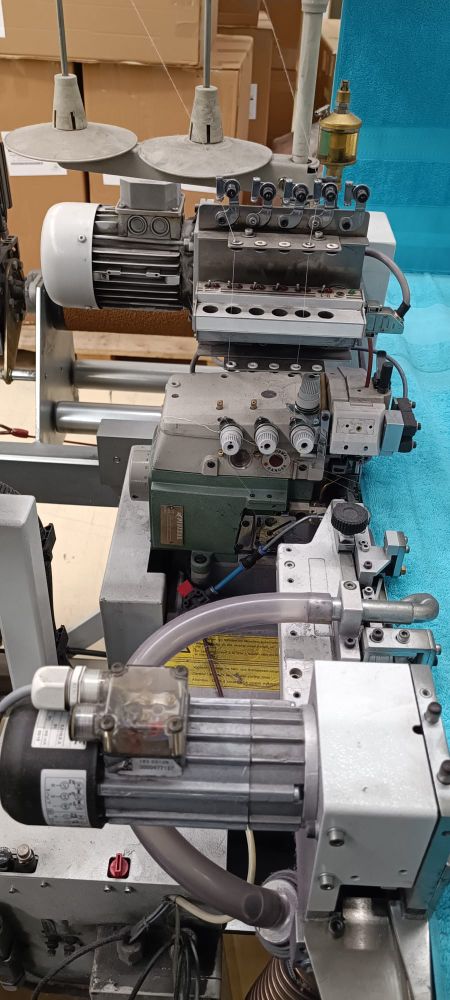

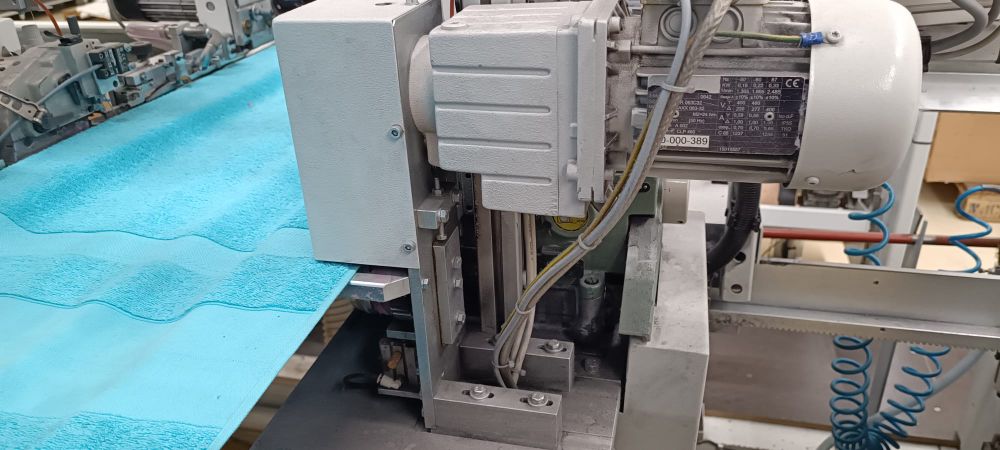

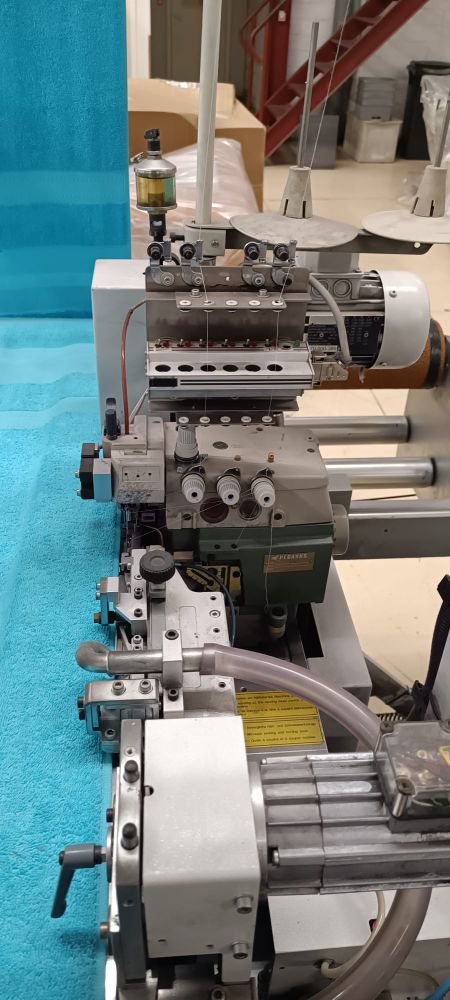

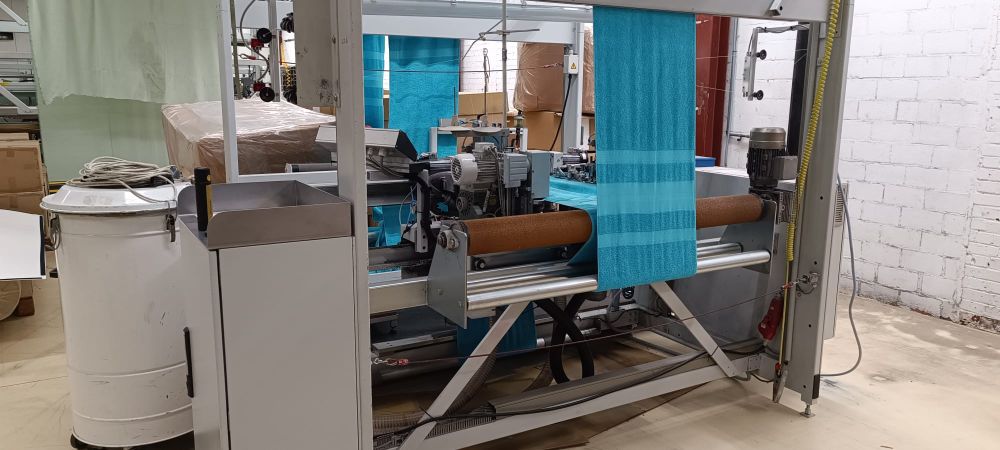

Schmale durate SD 519

automatic double sided sewing system for hemming terry cloth
Min. WW approx. 28 cm
Max WW approx 120 cm
product presentation from stacks up to 200 cm high
the product inlet height is approx. 3350 mm
double sided electric pile scanning system
standard edge control
double sided edge trimming device
the cutting device precisely separates the finest individual threads and entire fabric strip
multi stage hammer
max sewing speed is approx. 20m/min at 3 stitches per cm (6000 rpm sewing head
continuously variable sewing speed control from min 10 m per minute to max 20 m per minute
the max sewing speed can be individually adjusted to the different material qualities
thread monitor automatically
fabric take off device in fabric inlet
2-needle double chain stitch sewing head, needle distance 2 mm
