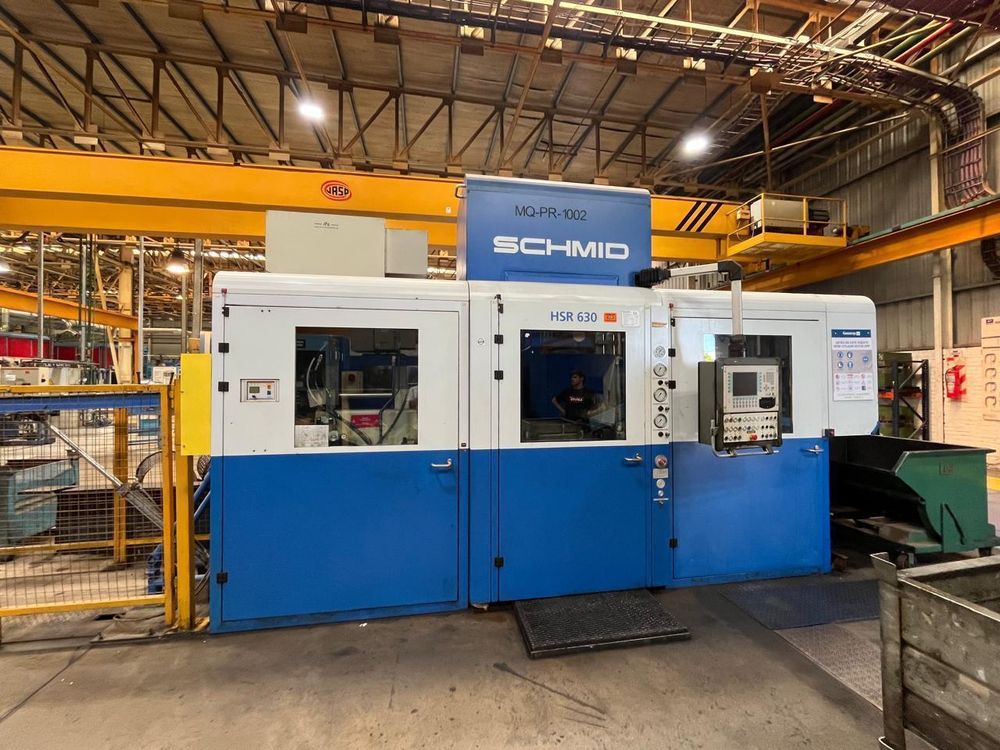

Schmid HSR 630 Ecoline 630 tons

Schmid HSR 630 Ecoline
Year: 2003


Thickness Range: 1mm-10mm
Width Range: 15mm-300mm
Coil OD Range: 800mm-1,600mm
Coil ID: 500mm
Max Coil Weight: 4,000kg

Tonnage 630 tons
CNC Controlyes
Control TypeSiemens
Maximum Tool Height420mm
Minimum Tool Height320mm
Machine Table Dimensions650mm
Total Force50-6,300KN
Stamping Force50-3,200KN
Counter Force40-1,600KN
Cut Speed11-44mm/sec
Pieces a Minute12-27 Pieces
Cut Stroke0-30mm
Total Stroke2mm-205mm

Equipped With:
Coil Feed Line:
Thickness Range: 1mm-10mm
Width Range: 15mm-300mm
Coil OD Range: 800mm-1600mm
Coil ID: 500mm
Max Coil Weight: 4000kg

Equipped With:
Piston Stop: CNC Type Automatic Hydraulic Positioning
Automatic Hydraulic Tool Clamping
V-Ring: Hydraulic Regulation
Tool Verification Protection (By Pressure from Operator's Panel)
External Tool Protection
Automatic Loop with Ultrasonic Sensor
Siemens PLC and Controls
