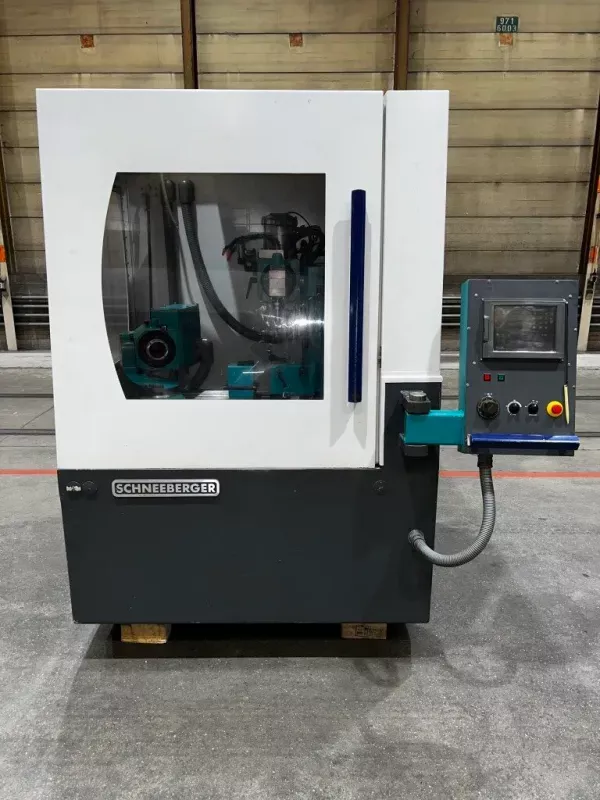

Schneeberger ARIES CNC 4

X-axis stroke length 360 mm
X-axis feedrate 2500 mm/min
X-axis resolution 0.005 mm
X-axis drive power 0.2 kW
Y-axis stroke length 250 mm
Y-axis feedrate 2500 mm/min
Y-axis resolution 0.005 mm
Y-axis drive power 0.2 kW
Z-axis stroke length 270 mm
Z-axis feedrate 1500 mm/min
Z-axis resolution 0.005 mm
Z-axis drive power 0.2 kW
C-axis swivel angle ±180°
C-axis drive manual
E-axis swivel angle +10° / -20°
E-axis drive manual
A-axis rotation unlimited
A-axis resolution 0.001°
A-axis mounting cone ISO 50
A-axis peak height 210 mm
Grinding spindle drive power 2.2 kW
Grinding spindle speed 0–9000 rpm
Grinding spindle disc mount cone 20°
Grinding spindle max number of discs 6
Machine table length 900 mm
Machine table width 290 mm
Machine width 1360 mm
Machine depth 1965 mm
Machine height 2120 mm
Machine weight 1850 kg
Connected load 11 kVA
Voltage 3 x 400 V AC
Frequency 50 Hz
Main fuse 25 A
