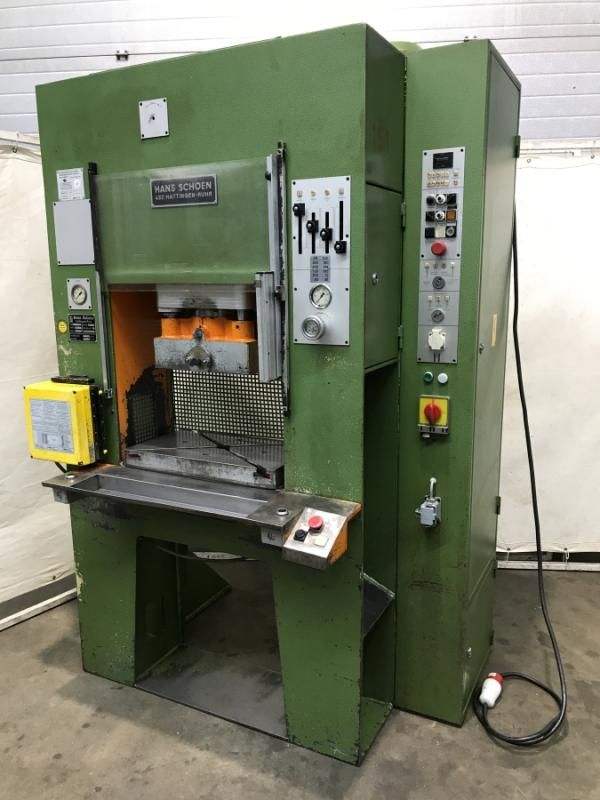

Schon SH 25 Hydraulic Press 25 ton
Ref :
2787158-3-AW
Condition :
Used
Manufacturer :
Schon
Model :
SH 25 Hydraulic Press
Pressure :
25 ton
Year(s) :
1979
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 25 ton
Frame width: 630 mm
Side clearance: 120 mm
Table size: 580 × 320 mm
Ram size: 360 × 220 mm
Clamping pin bore: Ø 40 mm
Maximum ram stroke: 100 mm
Maximum installation height: 270 mm
Table height: 900 mm
Motor power: 7.5 kW
Electrical: 380 V, 50 Hz
Main cylinder overhauled: 2025
Safety light curtain: SICK LUV 206
Two-hand operation
Stroke counter
Rapid and working stroke
Stroke limit (pressure- or distance-dependent)
Mechanically adjustable fixed stop
Press force regulation
Press time extension: 1–10 s
Machine footprint (L×B×H): 1450 × 1100 × 2200 mm
Weight: 1,200 kg
Good condition
