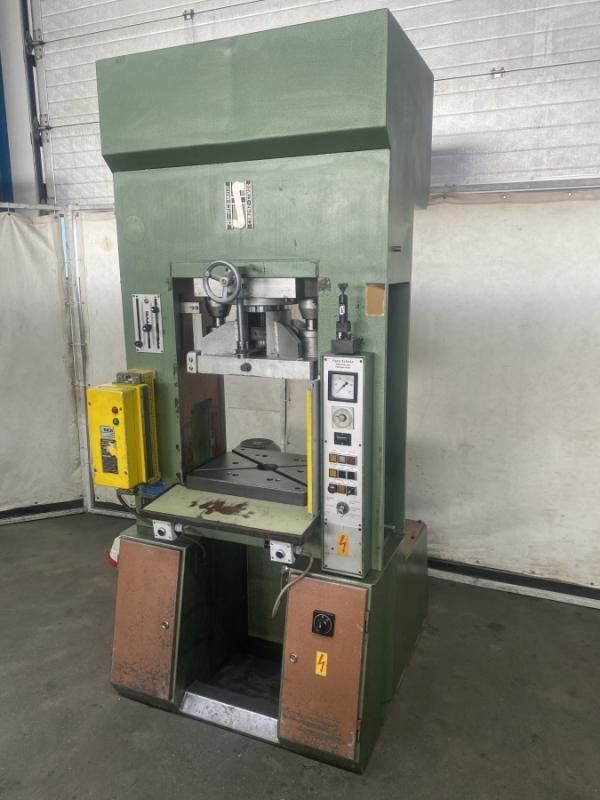

Schon UTE/B 50 50 ton

Press force: 50 ton
Frame width: 550 mm
Clearance between frames sideways: 150 mm
Table surface: 480 x 380 mm
Table opening diameter: 70 mm
Ram surface: 490 x 280 mm
Clamping pin bore: 40 mm
Maximum ram stroke: 150 mm
Maximum installation height: 390 mm
Table height over floor: 890 mm
Rapid speed: 130 mm/s
Working speed: 20 mm/s
Return speed: 130 mm/s
Motor power: 4 kW
Power supply: 380 V, 50 Hz
Stepless press force adjustment
Rapid and working stroke
Stroke limitation by pressure or distance
Adjustable dwell time, press time extension 0.5–6 s
Mechanically adjustable stop via handwheel on ram
Safety light barrier: SICK LVU
Stroke counter
2-column guidance on ram
Required space L x W x H: 1,100 x 1,050 x 2,320 mm
Machine weight: 1.5 ton
Condition: Good
