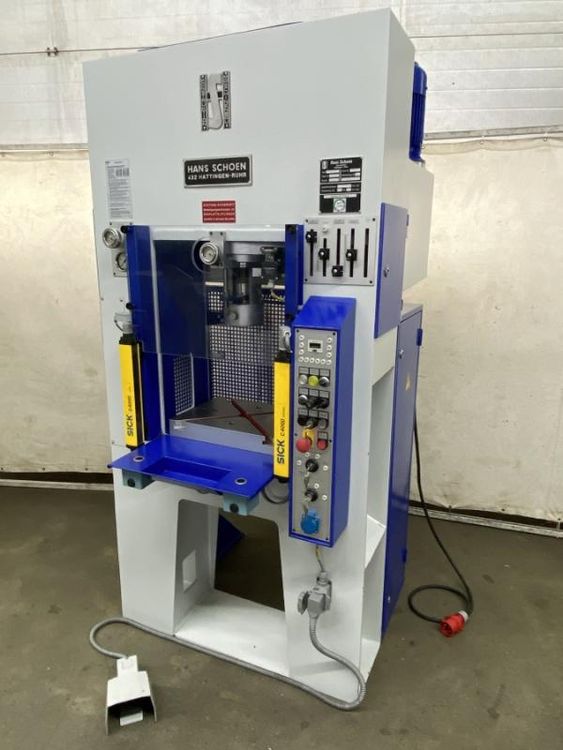

Schon TES 25 25 t

Press force: 25 t
Column distance: 500 mm
Side opening between columns: 120 mm
Table surface: 440 x 320 mm
Table opening diameter: 50 mm
Ram surface diameter: 140 mm
Clamping pin diameter: 40 mm
Ram stroke max.: 100 mm
Max. daylight: 330 mm
Table height from floor: 910 mm
Motor power: 4 kW
Power supply: 400 V / 50 Hz
Machine length: 1100 mm
Machine width: 1050 mm
Machine height: 2100 mm
Machine weight: 900 kg

Features / Equipment
Double-column hydraulic press
General overhaul completed in 2019
Complete hydraulic system renewed
Complete electrical control system renewed
Two-hand operation
Electric foot pedal control
Light curtain operation
Setup mode
Single stroke two-hand mode
Single stroke foot pedal mode
Light curtain control mode
Rapid traverse
Working stroke
Pressure-dependent stroke limitation
Stroke-dependent stroke limitation
Mechanically adjustable fixed stop
Manual press force adjustment
Press dwell time adjustment 0.5–3 s
Stroke counter
Safety inspection completed in 2019
Complete documentation included
Very good condition
