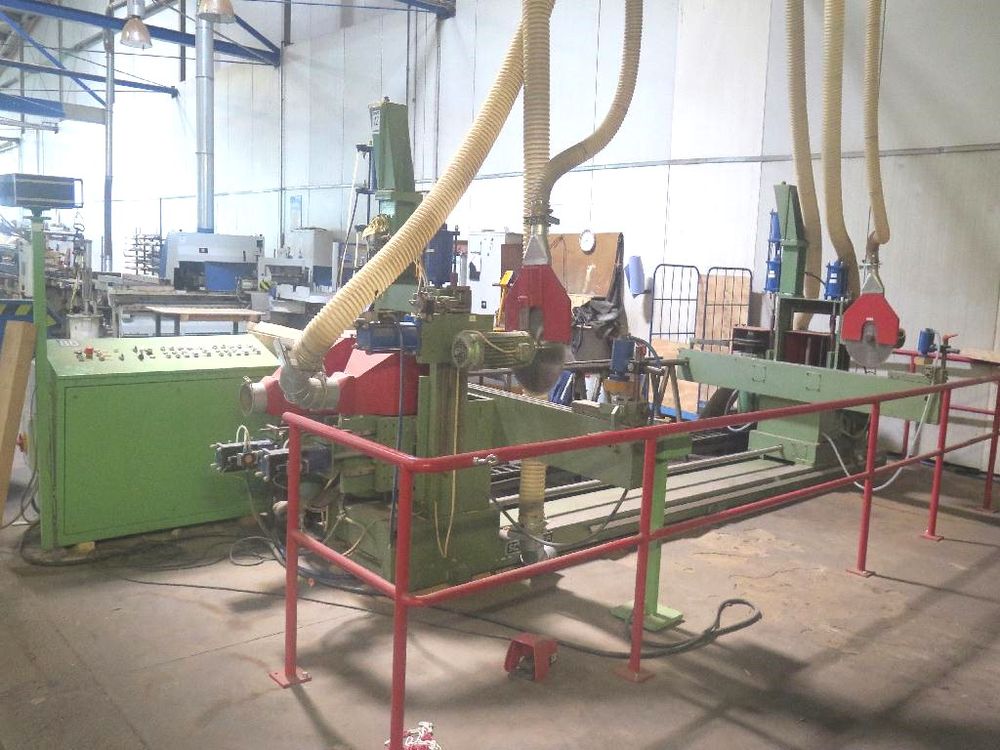

Schroder T2701 Double-End Tenoner

Double-Sided Tenoning and Slotting Machine
For window production and frame wood processing

Max. working width 4000 mm
3 motors per side:
Cross-cut saw 3 kW
Milling machine 7.5 kW
Milling machine 9.2 kW

Pivoting cross-cut saw
Saw blade diameter 400 mm
Horizontally controlled against 8-way turret

Milling units controlled horizontally and vertically for accommodating 2 tool sets each
Milling shaft diameter 40 mm
Clamping length 240 mm, tool diameter up to 400 mm

Electric width adjustment
Pneumatic workpiece clamping
Rear ejection
Automatic feed 15 m/min. Return 30 m/min.
Gentle stroke at machining points 5 m/min.
Feed motor 0.09/0.85 kW

Control cabinet with control unit
With safety barrier

Dimensions: 5800 mm x 2320 mm x H 2000 mm
+ Control cabinet 1200 mm x 800 mm H 1600 mm
+ Barrier depending on distance
Shipping dimensions
5800 mm x 2400 mm x H 2340 mm
Weight approx. 3500 kg
