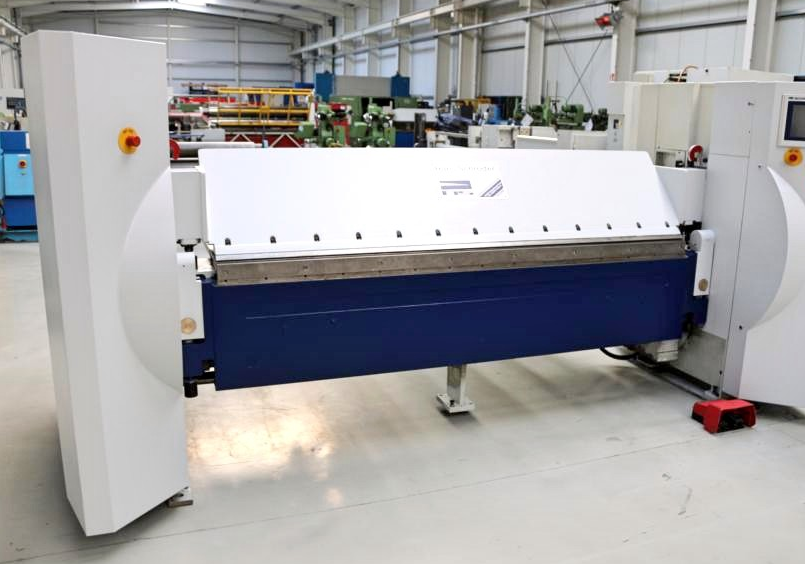

Schroeder MAK 3 2500/4.0

Sheet width: 2520 mm
Maximum plate thickness (steel): 4.0 mm
Maximum plate thickness (stainless steel): 2.0 mm
Upper clamping bar adjustment: 250 mm
Upper clamping bar adjustment speed: 100 mm/s
Folding beam adjustment: 80 mm
Bending speed: 120 degrees/s
Compressed air requirement: 6 bar
Maximum working height: 869 mm
Control: POS 2000 CNC
Total power requirement: 6.0 kW
Operating voltage: 400 V
Machine weight: 4100 kg
Machine dimensions (L x W x H): 4120 x 2400 x 2090 mm

CNC electro-motorized universal folding machine
Servo inverter-controlled drives
CNC motorized lower beam adjustment
CNC electro-motorized backgauge
Backgauge travel speed: 300 mm/s
Rear sheet support surface
Freely movable double foot switch
Touchscreen control panel
USB interface
Automatic bend calculation
Material library
Tool library
Bending simulation
Split gouge tools, top
Operating instructions (digital)
