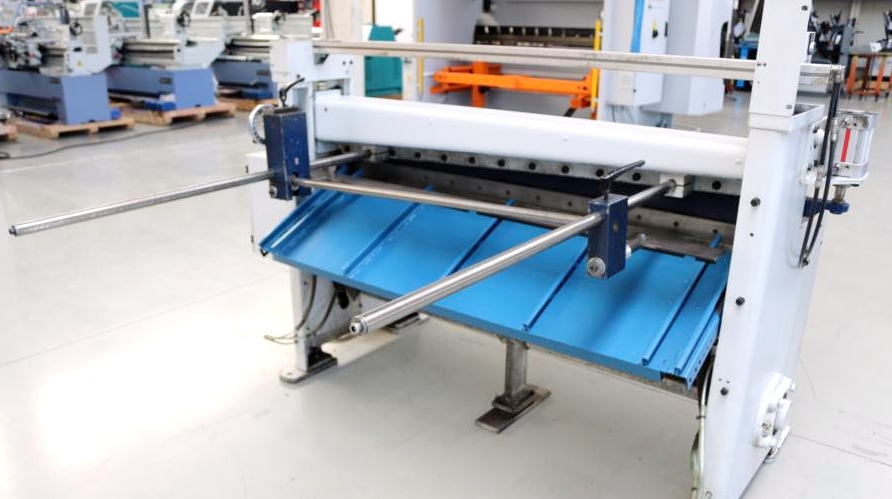

Schroeder MHSU 1500/4.0

Sheet width: 1530 mm
Plate thickness: 4.0 mm
Thickness for stainless steel: 2.0 mm
Number of strokes: max. 34 strokes/min
Cutting angle: 2.7°
Distance between columns: 1540 mm
Work height max.: 920 mm
Voltage: 400 V
Engine output: 3.2 kW
Weight: 1115 kg
Range L×W×H: 2275 × 2220 × 1400 mm

Conventional control
Robust motorized swing-arm guillotine shear
Break-resistant, torsion-resistant welded steel construction
Compact and easy-to-use machine design
Manual backgauge, adjustable from the rear
Stepless adjustment across the entire travel range
1 hold-down bar
1 freely movable foot switch
Front extendable table extension
Rear safety device
Original operating instructions
Optional sheet metal holding device for thin sheet metal blanks
