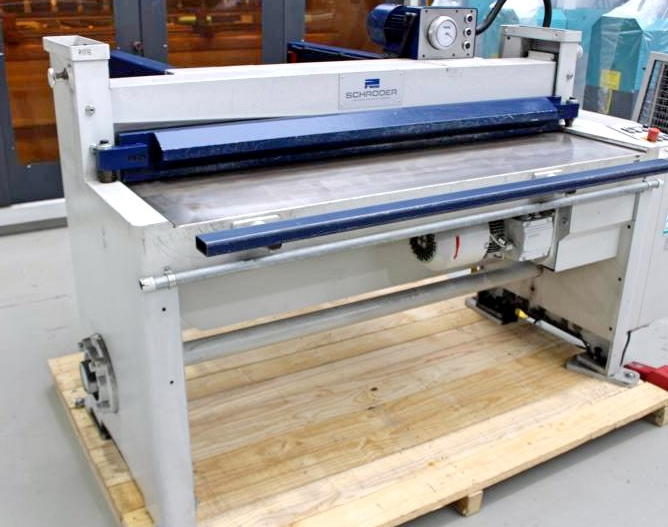

Schroeder MHSU 1500/3.5

Sheet width: 1530 mm
Plate thickness: 3.5 mm
Thickness at stainless steel: 2.0 mm
Max. strokes: 34 strokes/min
Cutting angle: 2.70°
Distance between columns: 1540 mm
Work height max.: 920 mm
Voltage: 400 V
Engine output: 3.2 kW
Machine weight: 1115 kg
Machine dimensions: 2275 x 2220 x 1400 mm

Features
Machine type: Plate Shear - Mechanical
Control type: Conventional
Robust motorized swing cut guillotine shears
Break-proof torsion-free steel welded construction
Compact and clear machine design
Electro-motorized back stop with analog position display
Stepless adjustment over the entire travel range
Adjustable from the front
1x hold-down bar
1x freely movable foot switch
Front extendable table extension
Rear safety device
