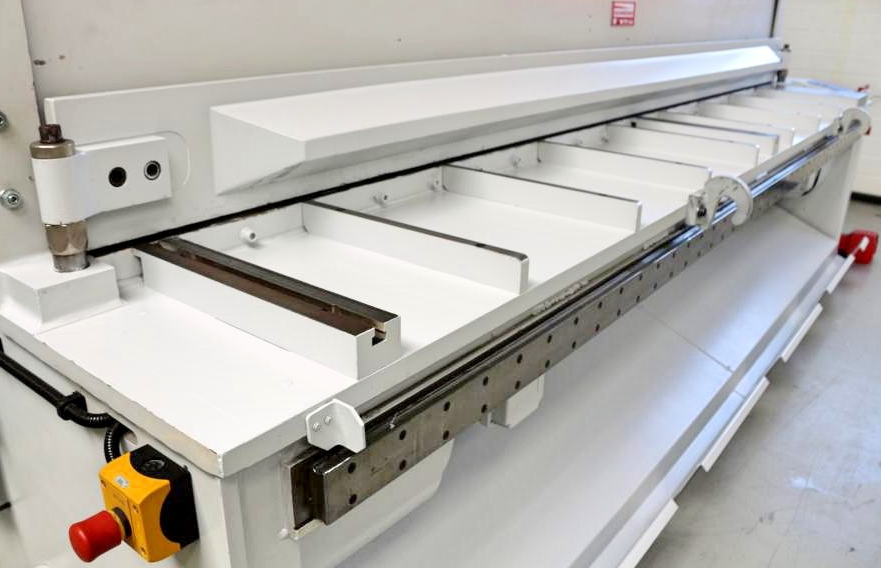

Schroeder MHSUV 3200/3.0

Sheet width 3230 mm
Plate thickness 3.00 mm
Thickness at stainless steel 1.75 mm
Number of strokes 34 strokes/min
Cutting angle 1.60°
Table height 820 mm
Distance between columns 3540 mm
Control POS 100
Air pressure 6.0 bar
Engine output 6.8 kW
Weight of the machine ca. 3510 kg
Dimensions of the machine ca. 4070 x 2070 x 1400 mm

Robust motorized swing cut guillotine shear
Shatter-proof torsion-free welded steel construction
Compact and clearly arranged machine design
NC electro-motorized backgauge
SCHROEDER NC POS 100 control unit
Adjustable from the front right
Target/actual value input
Continuous adjustment across the entire travel range
Coarse adjustment via pushbuttons
Limit value protection with limit switches
“Duo-Cut” drive with two dynamic powerful gear motors
Support table with recessed grips
Hold-down bar with hard rubber strip
All-steel blade
Side stop with T-slot and digital mm scale
Two extended sheet support arms
Selector switch for single and continuous stroke
Freely movable foot switch
Rear safety device with side guards
Original operating instructions
Pneumatically controlled sheet support device for thin sheet blanks
Sheet removal/sheet slide to the front operator side
