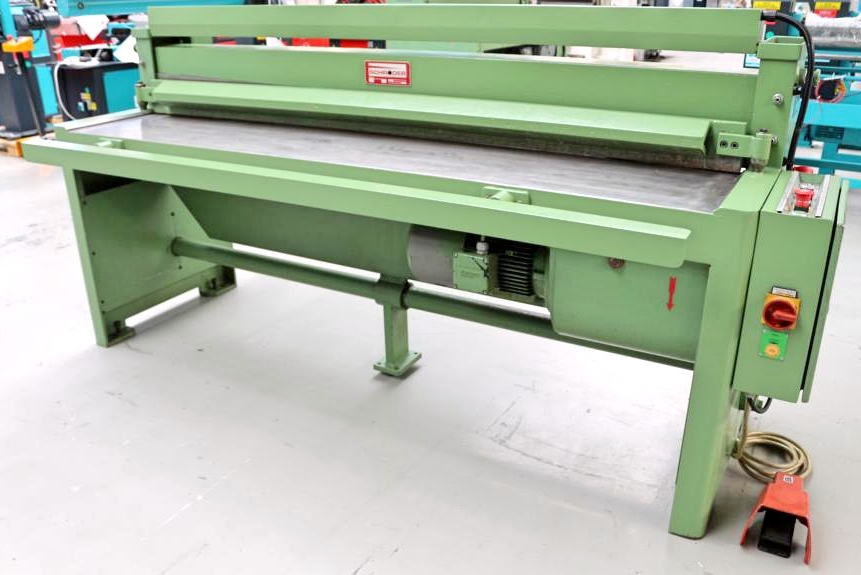

Schroeder MHSU 2030 x 3.0

Price:

SCHROEDER MHSU 2030 x 3.0, 1990

Technical data:
Sheet width: 2030 mm
Steel plate thickness: 3.0 mm
Aluminum plate thickness: 4.0 mm
Distance between columns: 2100 mm
Number of strokes: 34 strokes/min
Cutting angle: 2.0°
Back stop (manual, adjustable): max. 500 mm
Max. working height: 805 mm
Total power requirement: 2.5 kW
Weight: 1250 kg
Dimensions (L×W×H): 2400 × 1400 × 1100 mm

Features:
Motorized swing-cut guillotine shear
Torsion-free welded steel frame
Manual backgauge with handwheel
Backgauge adjustment range up to 500 mm
Hold-down bar
Support/work table with 10 mm-spaced grooves
Extendable support table
Freely movable foot switch
Rear sheet slide
Used set of spare blades
Operating instructions included
