Schroeder MHSUV 3200/3.0

SCHROEDER MHSUV 3200/3.0
Year: 2002

sheet width: 3230 mm
plate thickness: 3.00 mm
thickness at "Niro-steel": 1.75 mm
no. of strokes: 34 strokes/min
cutting angle: 1.60 degrees
table height: 820 mm
distance between columns: 3540 mm
Control: POS 100
air pressure: 6.0 bar
engine output: 6.8 kW
weight of the machine approx.: 3510 kg
dimensions (L x W x H): 4070 x 2070 x 1400 mm

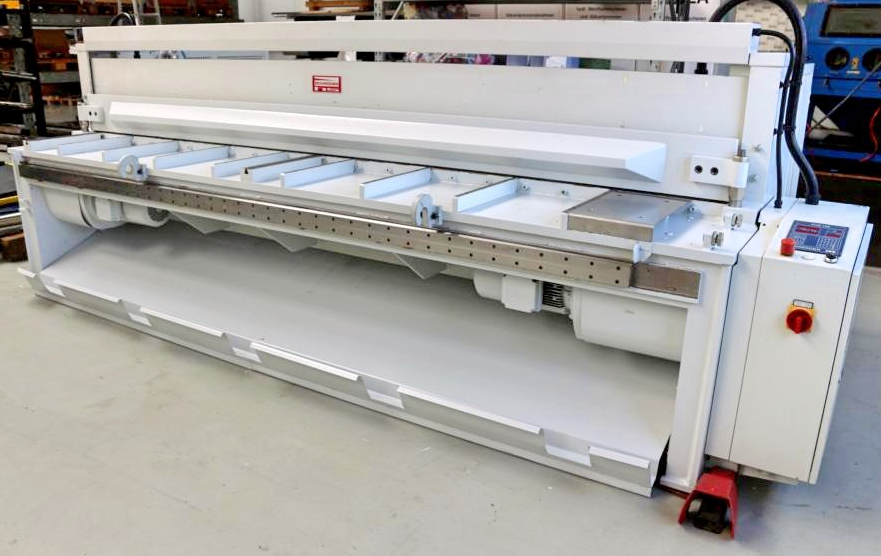

Robust motorized swing cut guillotine shear
Shatter-proof torsion-free welded steel construction
Compact clearly arranged machine design
NC electro-motorized backgauge
SCHRÖDER NC POS 100 control unit
Backgauge adjustable from the front right
Target/actual value input
Continuous adjustment across the entire travel range
Coarse adjustment via pushbuttons
Limit value protection with limit switches
Duo-Cut drive with two dynamic powerful gear motors
Support table with recessed grips
Hold-down bar with hard rubber strip
All-steel blade
1x side stop with T-slot
Digital mm scale on side stop
2x extended sheet support arms
Selector switch for single and continuous stroke
1x freely movable foot switch
Rear safety device with side guards
Original operating instructions
Pneumatically controlled sheet support device for thin sheet blanks
Sheet removal slide to the front (operator side)
