Schroeder SPB 3200/3.0 Sheet width: 3220 mm

Plate thickness: 3.0 mm ST
Thickness at Niro-steel: 2.0 mm
Upper clamping bar adjustment: 300 mm
Adjustment speed: 100 mm/sec
Lower beam adjustment: 80.0 mm
Bending speed: 120 °/sec
Work height max.: 869 mm
Back stop adjustable: 1.0 - 1500 mm
Compressed air: 6.0 bar
Control type: POS 2000
Voltage: 400 V
Total power requirement: ~8.8 kW
Weight: 4380 kg
Range L-W-H: 4575 x 2450 x 1737 mm

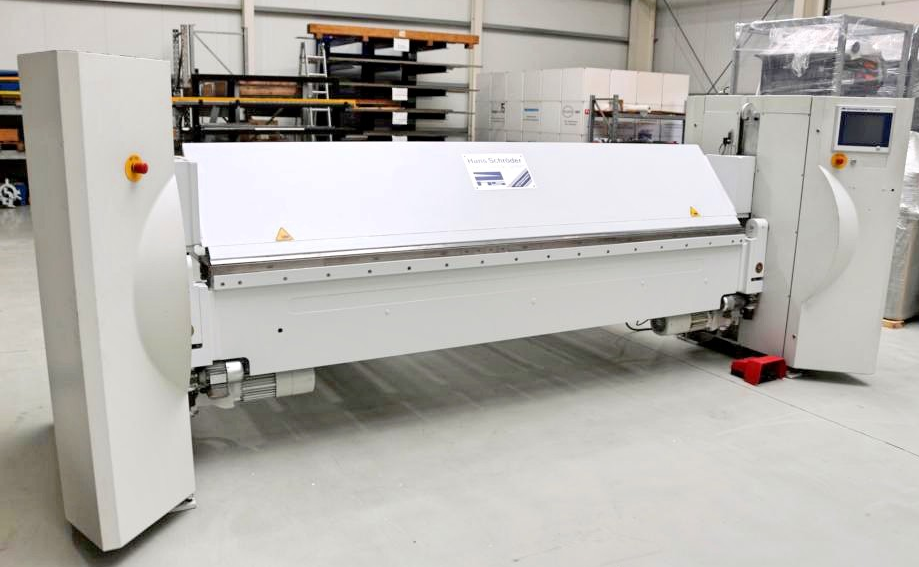

Motorized universal folding machine "SERVO POWER BEND"
High-precision mechanics with modern control technology
For single and series production
Robust high-speed machine with high axis speeds
Torsion-free welded construction
SCHRÖDER CNC control model "POS 2000"
Touchscreen control panel
Color display
USB interface
Automatic cutting calculation
Material and tool library
Precise bending simulation
Windows XP operating system
Servo-converter-controlled drives for bending beam/upper beam & electric backgauge
CNC electric-driven lower beam adjustment
CNC electric-driven backgauge, travel speed 300 mm/sec
Rear sheet support surface with ball transfer units
1x freely movable double foot switch
2x front emergency stop buttons
Operating instructions (PDF)
1x split set of bending rails - bottom (installed)
1x extra bending rail 25.0 mm
1x extra bending rail 10.0 mm
1x extra bending tool for the top - POINT
1x extra split set of bending tools for the top - GOAT'S FOOT
Tool height 170 mm
