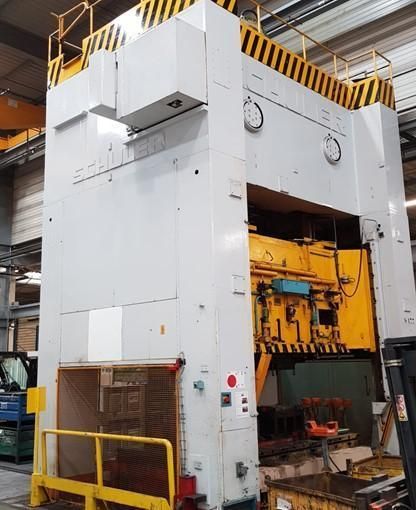

Schuler ES4-600-3,35-0.6 600 Ton

Drive kinematics eccentric
Number of connecting rods 4
Slide stroke 600 mm
Shut height 1100 mm
Slide adjustment 400 mm
Slide dimensions 3350 x 2130 mm
Bolster dimensions 3350 x 2130 mm
Number of moving bolsters 1
Moving bolster exit front-back
Continuous speed 10 - 20 spm
Main motor power 75 kW
Maximum height from floor level 8000 mm
Clearance between uprights L-R 3700 mm
Clearance between uprights F-B 2200 mm
Maximum press weight 200,000 kg
