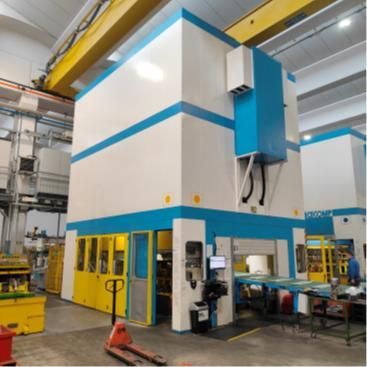

Schuler ES4-600-4.5-0.4 600 ton

Rated capacity at 25 mm: 600 tons
Type: Straight side double crank (single action)
Kinematics: Eccentric
Number of connecting rods: 4
Slide stroke: 406 mm
Slide adjustment: 254 mm
Continuous speed (variable): 10 – 40 spm
Shut height from top of bolster: 1470 mm
Slide dimensions (L-R x F-B): 4500 x 2250 mm
Front moving bolster dimensions: 4500 x 2250 mm
Clearance between uprights (L-R): 4600 mm
Clearance between uprights (F-B): 2150 mm
Moving bolster height: 510 mm
Press weight: 170,000 kg
Decoiler-straightener and sheet feeding line
Feed line year: 2013
Maximum sheet width: 1500 mm
Maximum sheet thickness: 2.5 mm
Coil weight capacity: 20,000 kg
