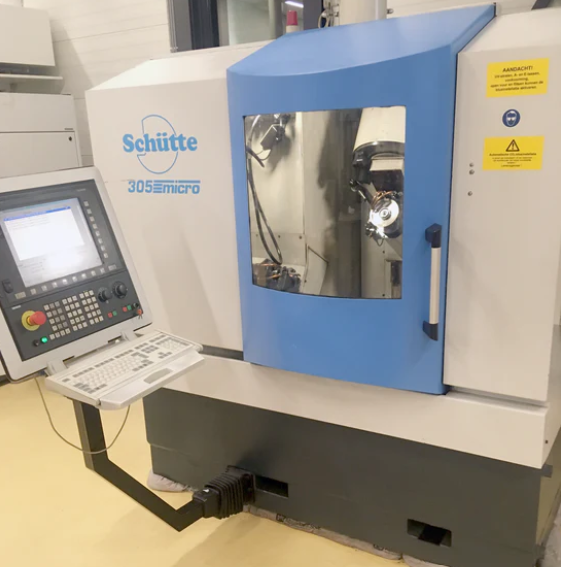

Schutte WU 305L MICRO

X-Axis Travel: 400 mm
Y-Axis Travel: 250 mm
Z-Axis Travel: 250 mm
Number of Axes: 5
Direct-Drive Rotary Axes
Direct-Drive Linear Axes
Direct Measuring System for X, Y, Z Axes
SIEMENS SINUMERIK 840D / Windows XP Control
Grinding Diameter: 1–10 mm
A-Axis: HSK 50E
Collet Attachment: 15 W
Spindle Nose: HSK 50
Grinding Spindle Speed: 12,000 rpm
Grinding Spindle Motor: 8 kW
Total Power: 20 kVA
5-Position Automatic Grinding Wheel Changer
Workpiece Guiding System
Central Lubrication
Fire Extinguishing System
Machine Dimensions: 1990 × 1640 × 1960 mm
Machine Weight: 2800 kg
