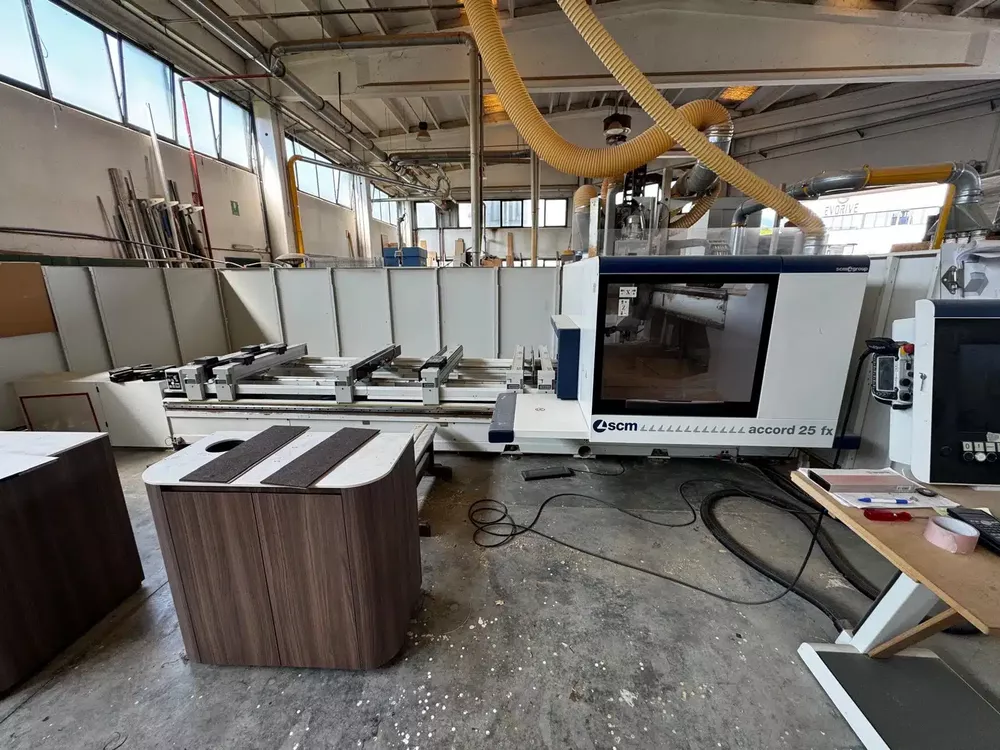

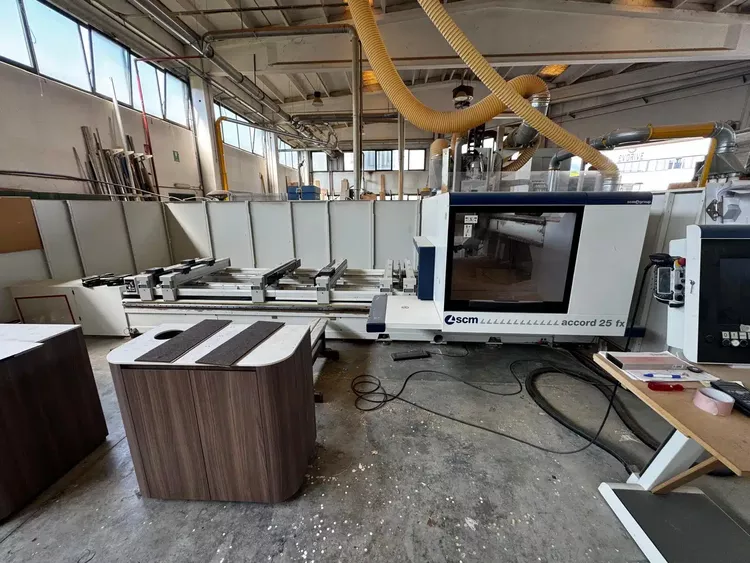

SCM Accord 25 Fx 5 AXIS

ACCORD 25 FX - X-Y Workspace = 3680x1380
Computerized numerically controlled machining center with a mobile gantry structure and fixed worktable designed
for machining solid wood and other types of materials such as laminated wood, plywood,
chipboard, MDF, plastics in general, composite materials, resins, and light alloys.

Workpiece passage: 250 mm (on H50 accessories)
Pendulum machining
Automatic axis lubrication
Remote assistance software

The START worktable allows for maximum flexibility of use as it is free from constraints when using the various modules for clamping the workpieces.
It consists of aluminum bars that move manually in the X-direction on ground guides and recirculating ball bearing slides.
Vacuum transmission between the bar and the suction cup is direct, without the need for external tubes.
The exclusive profile of the bars ensures maximum rigidity and allows for the use of pneumatic clamps specifically designed for machining window elements and solid wood elements in general.
The table setup is configured by part program and the positioning dimensions are displayed on the machine's main screen
or on the TecPad display (optional) to allow the operator to easily and precisely position the bars, suction cups and clamps.
The table consists of:

2 fixed side bars
6 manually movable aluminum bars in the X direction
Motorized chip conveyor

Each movable bar is equipped with:
Provision for lifters
Provision for reference stops

Each fixed bar is equipped with:
1 H. 50 mm front stop for workpiece reference in the X direction

Each movable bar is equipped with:
1 H. 50 mm internal stop for workpiece reference in the Y direction

Each fixed bar is equipped with:
1 H. 50 mm rear stop for workpiece reference in the X direction

Each movable bar is equipped with:
1 H. 50 mm internal stop for workpiece reference in the Y direction
This allows workpieces to be raised above the actual work surface for easier loading and reference.
Each lifter can lift up to 20 kg.
Operating unit, with 5 interpolating axes, anchored to the mobile crosspiece
which ensures maximum rigidity during milling and excellent finishing quality even in the presence of large removals.
