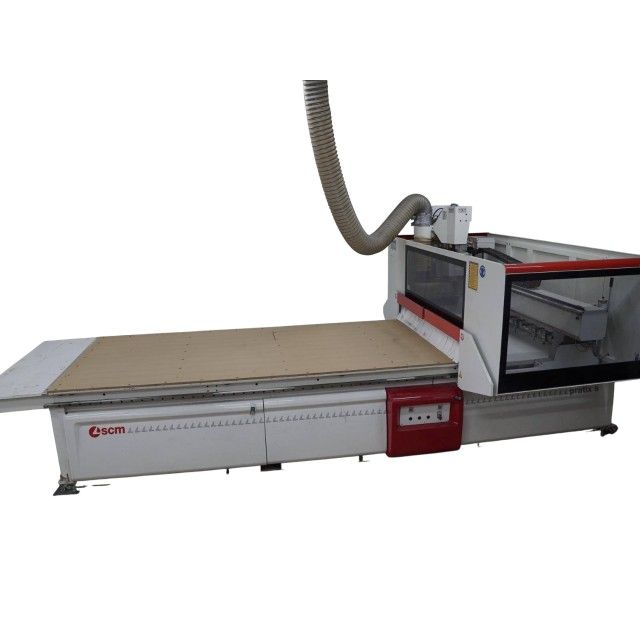

SCM PRATIX S 15 B 3-AXIS

3-AXIS DRILLING & MILLING CENTER WITH FULL TABLE
MAKING CAPACITIES:
Useful X-Y-Z axis travel: 3686 - 1555 - 100 mm
Overall X-Y travel: 4320 - 1985 mm
Workpiece clearance: 3710 x 1550 x h. 240 mm
Maximum X-Y axis speed: 35 m/min

COMPOSITION:
- Full table, floor height 92 cm
- 10-position side-mounted tool magazine
- 250 m3/h vacuum pump
!! Planned: Addition of a second 250m3/h vacuum pump
that can also be accommodated in the frame
- Supplied with some functional original suction cups
• 2.2kW vertical drilling head
- 7 spindles (5X-3Y) System 32
- Rotation speed 4000rpm
• 6.6kW electrospindle milling head
- Rotation speed 0-24000rpm
On bridge, slides on each side
- HSK63F tool connection
possibility of connecting a single-pin angle tool
(example: saw blade for x-axis length sawing)
• Control panel
!! Considered: Windows 7 Pro PC upgrade
- Software: Xilog Plus and MAESTRO with license key
Machine and tool configuration on a simple and intuitive page
Direct import of DXF and XXL files, programming

OTHER INFORMATION:
- Power supply: 400V 3-phase + N IN 37A
- Minimum pneumatic supply: 6.5 bar
- Required suction: 5300m3/h, air speed: 30m/sec
- Centralized Ø250mm outlet
- "Pro-space" machine without partitions

Dimensions: 6 x 2.80 x H. 2.60 m
Total machine weight: 3000 kg
