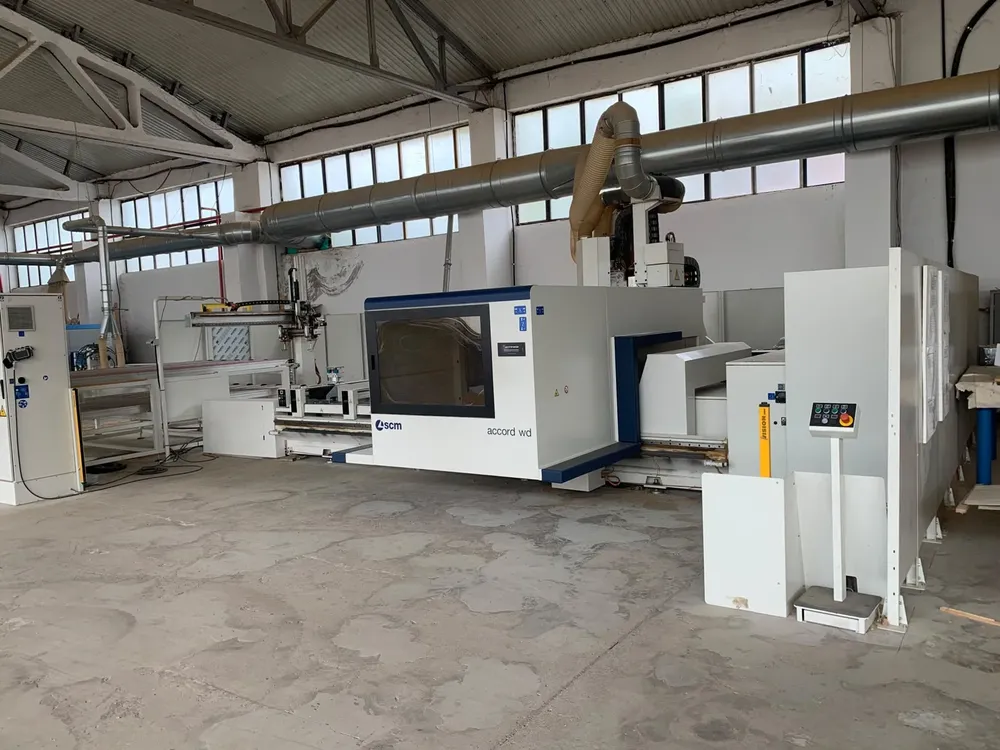

SCM ACCORD WD 5-Axis

5-Axis Machining Center
Workpiece dimensions:
Length: 250 – 3680 mm
Height: 15 – 250 mm
Width: 30 – 1950 mm

Automatic loading and unloading system equipped with magazines for 32 pieces:
16 loading positions
16 unloading positions
Workpiece width: 120 mm
Maximum workpiece weight handled by the automatic table: 480 kg

Positioning and clamping system:
6 automatic beams with a total of 18 grippers
Compressed air cleaning device located under the vise cover directly in the clamping area
Adjustable vise clamping pressure depending on the material being processed
Pressure loss/clamping looseness monitoring sensor
Minimum distance between grippers and beam: 140 mm

Automatic table:
Maximum feed speed: 80 m/min

5-axis electrospindle:
Liquid cooling
Power: 13 kW at 7000 rpm
Tool clamping system: HSK63E

Machining unit with 0–360° rotation consisting of:
Vertical milling unit – 4.5 kW
Horizontal drilling unit – 4.5 kW
Horizontal milling unit – 4.5 kW
Strip/thin element cutting unit – 4.5 kW

Tool magazine – 48 positions:
Tool holder spacing: 104 mm
Maximum tool diameter: 350 mm
Maximum permissible weight on the chain: 250 kg
Maximum weight per station: 15 kg
Tool support holders: METAL
Additional 12-position tool magazine – RAPID12:
Tool holder spacing: 88 mm
Maximum tool diameter: 230 mm
Maximum weight per station: 8 kg

Additional 12-station tool magazine – TR12:
Tool holder spacing: 130 mm
Maximum tool diameter: 300 mm
Total number of tool slots: 72 positions
Option to purchase additional tools
