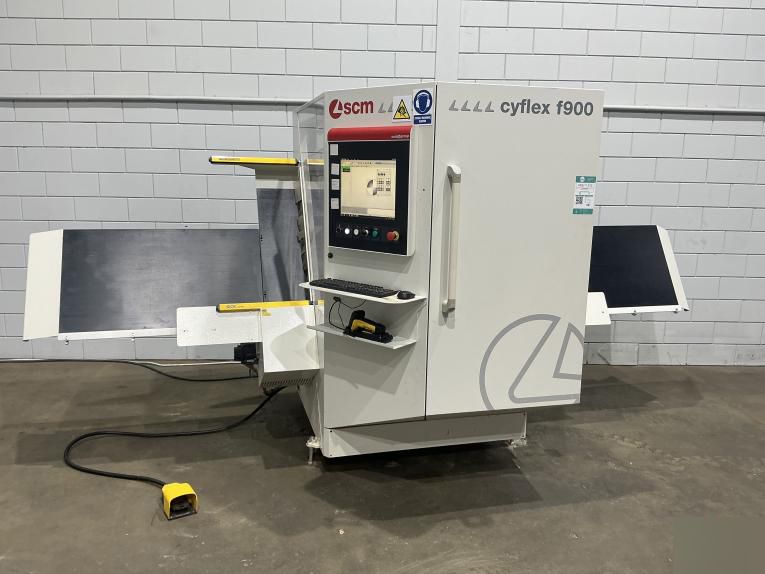

SCM Cyflex F900

Documentation available Yes
CE marking present Yes
CE certificate present No
Operating hours 19402
Number of milling spindles [pcs.] 1
Type milling table Flat table
Tool clamping system ISO30
Material clamp system Pneumatic
Drilling unit present Yes
Saw unit present Yes
Tool changer positions [pcs.] 0
System/software SCM Maestro
Safety feature Door interlock switches, Safety light curtain
Tools included Yes
CNC options Barcode reader, Manual control
CNC documentation available USB stick, User keys/licenses
Table length [mm] 3960
Table width [mm] 840
Working range X [mm] 3050
Working range Y [mm] 900
Z-axis working range [mm] 60
Voltage [V] 400
Current consumption [A] 35
Fuse [A] 63
Power [kW] 10.0
Installed length [mm] 4500
Installed width [mm] 1900
Installed height [mm] 2250
Transport dimensions 2500mm x 1900mm x 2250mm (l x w x h)
Transport weight [kg] 1600kg
Transport packages [pcs.] 1
