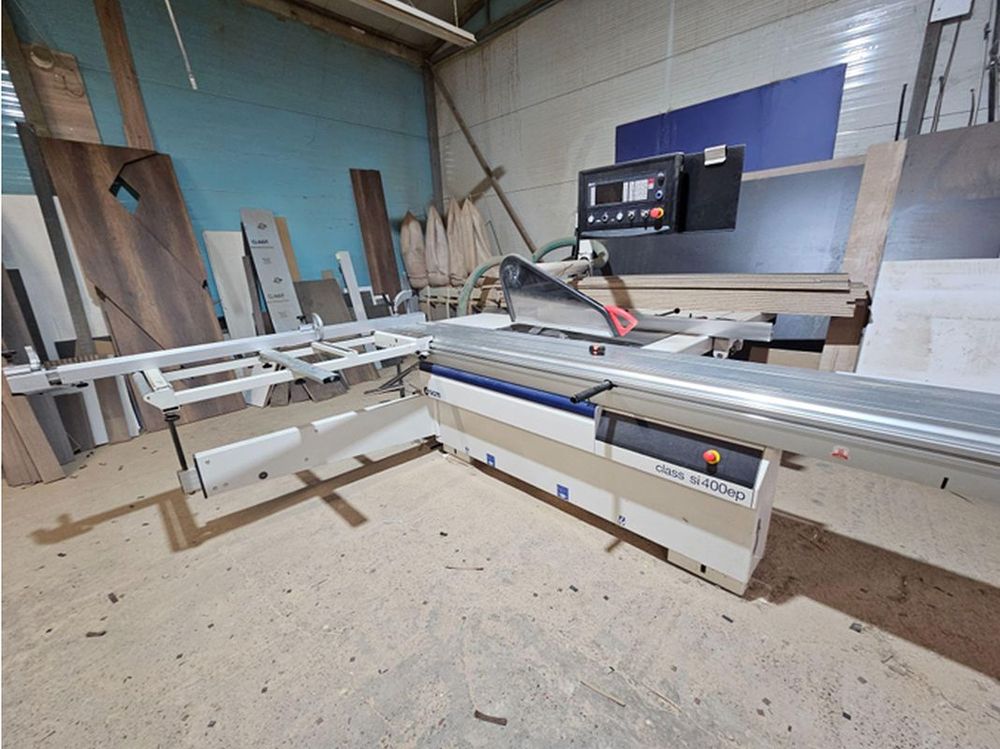

SCM Class Si 400EB

Circular saw
Maximum cutting height at 90°: 140 mm (with Ø 400 mm main saw blade)
Maximum cutting height at 45°: 97 mm (with Ø 400 mm main saw blade)
Main saw blade: Ø 400 mm
Scoring saw blade: Ø 120 mm
Swivel range of main saw blade: 0°-45°
Main saw blade speed: 3,000 / 4,000 / 5,000 rpm
Scoring saw blade speed: 8,500 rpm
Main motor power: 7 kW (9.5 PS)
Scoring motor power: 1.3 kW (1.7 PS)
Sliding carriage: 3,200 × 320 mm
Alternative carriage length: 3,800 × 320 mm
Cutting width at the rip fence: 1,270 mm
Dust extraction connection on the protective hood: Ø 120 mm
Dust extraction connection on the machine body: Ø 100 mm

Model: EASY 3 UP PLUS CE
Control panel: Swiveling control panel in suspended design
Control system: EASY2 control system with 7" widescreen monitor
Cutting height programming: Electronic adjustment and display
Blade tilt programming: Electronic adjustment and display
Rip fence: Electronically programmable
Operator assistance: Support functions for complex cutting tasks
Tool data management: Storage of saw blade data
Program memory: Up to 300 programs
