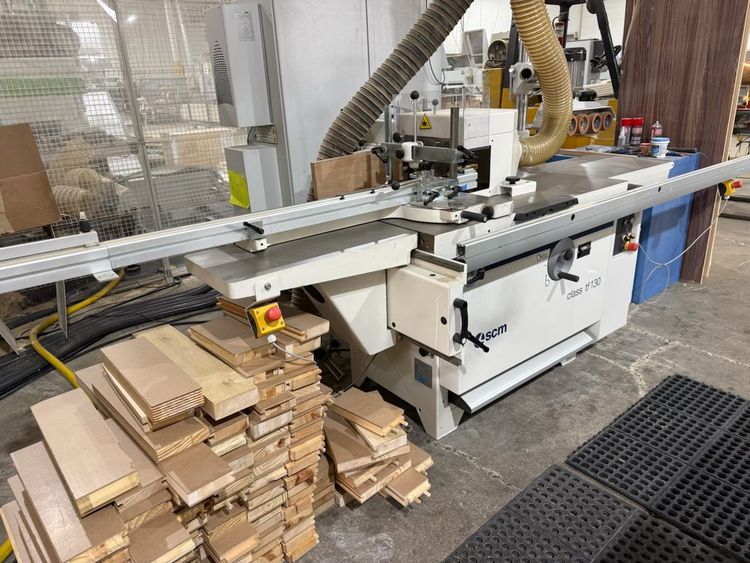

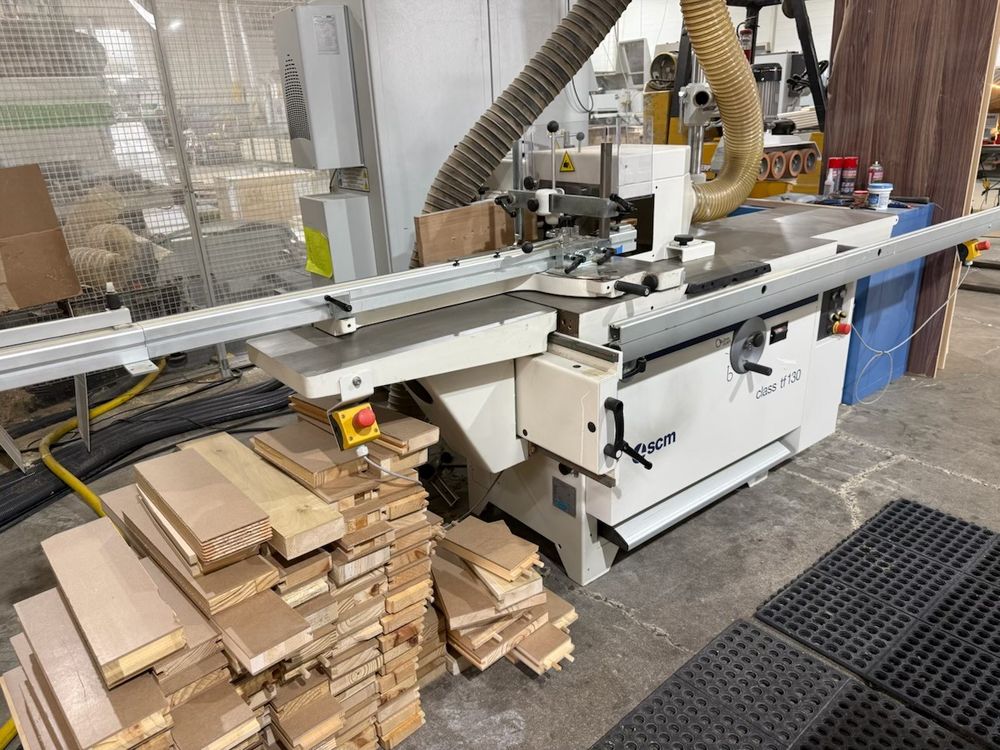

SCM Class TF 130

Condition: Used – Excellent Condition
Machine Type: Tilting Spindle Shaper, Power Feeder & Mortising Table

Included Equipment:
Main Machine :
SCM Class TF 130 Tilting Spindle Shaper
Heavy-duty cast iron table
Tilting spindle configuration
Digital spindle height readout
Precision adjustable fence system

Additional Equipment Included:
Mortising table
Power feeder (220V)
Manuals
Spare parts

Key Features :
Tilting spindle design
Reverse spindle rotation
Electronic spindle brake
Multiple spindle speed selections
Digital spindle height positioning
Heavy-duty cast iron construction
Professional fence system with precision adjustment
Industrial European build quality
Low operating hours

Technical Specifications :
Spindle
Maximum useful spindle length: 180 mm (7")
Spindle speeds:
3,000 RPM
4,500 RPM
6,000 RPM
7,000 RPM
10,000 RPM

Tool Capacity:
Maximum profiling tool diameter: 250 mm (9.8")
Maximum retractable tool diameter below table: 300 mm (11.8")
Maximum tenoning tool diameter: 300 mm (11.8")

Table :
Approximate table size: 1200 mm × 730 mm
Heavy-duty cast iron construction

Main Motor:
11 HP spindle motor

Electrical Specifications:
Main Machine – SCM TF 130
Voltage: 600V
Phase: 3 Phase
Frequency: 60 Hz

Power Feeder:
Voltage: 220V
Independently powered feeder system

Machine Dimensions & Weight :
Length: 120"
Width: 48"
Height: 63"
Weight: Approx. 1,850 lbs (840 kg)

Condition Notes :
Excellent overall condition
Low operating hours
Under power
Complete machine package
Manuals included
Spare parts included
