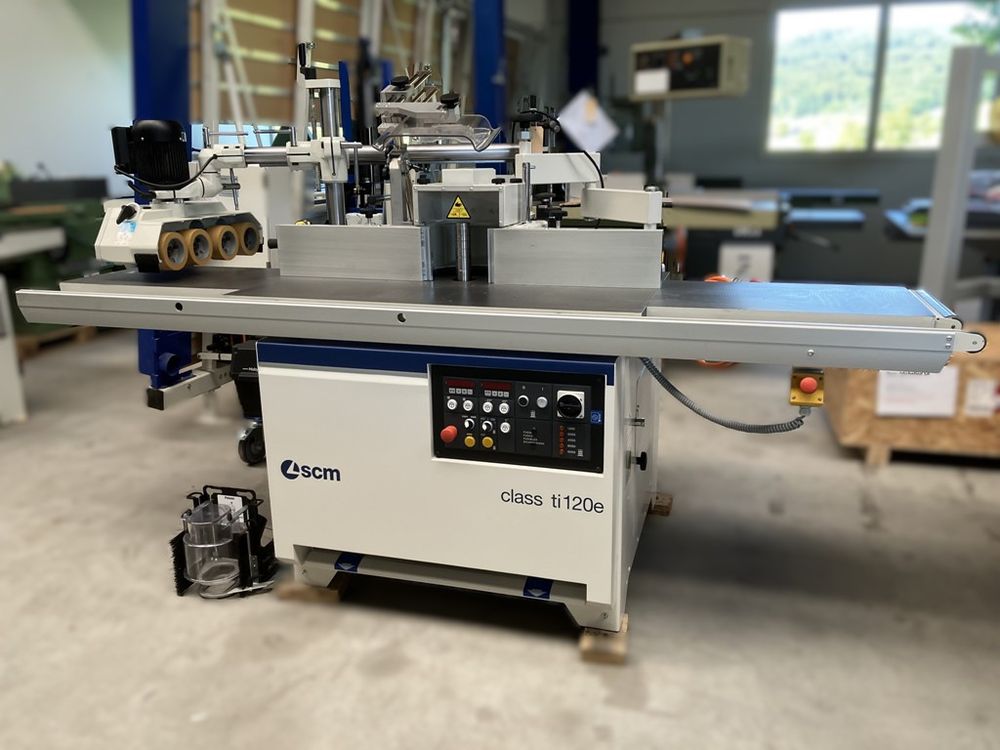

SCM Class ti 120e

Moulding machine
– Motor adjustment of the spindle with electronic Digital display for the position
– Electrical speed indicator
– Right/left-hand run
– Interchangeable milling spindle MK4
– «Flex» system for milling stop with mechanical adjustment continuously adjustable via handwheels
– pivoting away of the stop
– Aluminium stop jaws
– Electrical preparation for feed apparatus
– 4-roll feed formula feed 48
– «LL» Casting Table Extensions
Total length cast table 2500mm
– extendable workpiece support with emergency stop
– Pin slot table complete with swiveling stops +/ 60° on the table
Telescopic extension and eccentric clamping device. 250 mm max. Tool diameter with standard profiling stop.
– Milling protection for work on the inlet ring
– with automatic star triangle start
– CE Tanning protection

Technical data:
Work table Dimensions 2500 x 810 mm
Milling spindle bevel position +/- 45 degrees
Spindle speed 3000/4500/6000/7000/10000 rpm
Max tool diameter 250 mm
Engine power 7kW
Rated current 12A
Diameter of the suction nozzle 1x 120 / 2 x 80mm
Dimension LxWxH: 2500 x 1300 x 1700 mm
Weight : approx. 755 kg
Is Workshop Inspection
