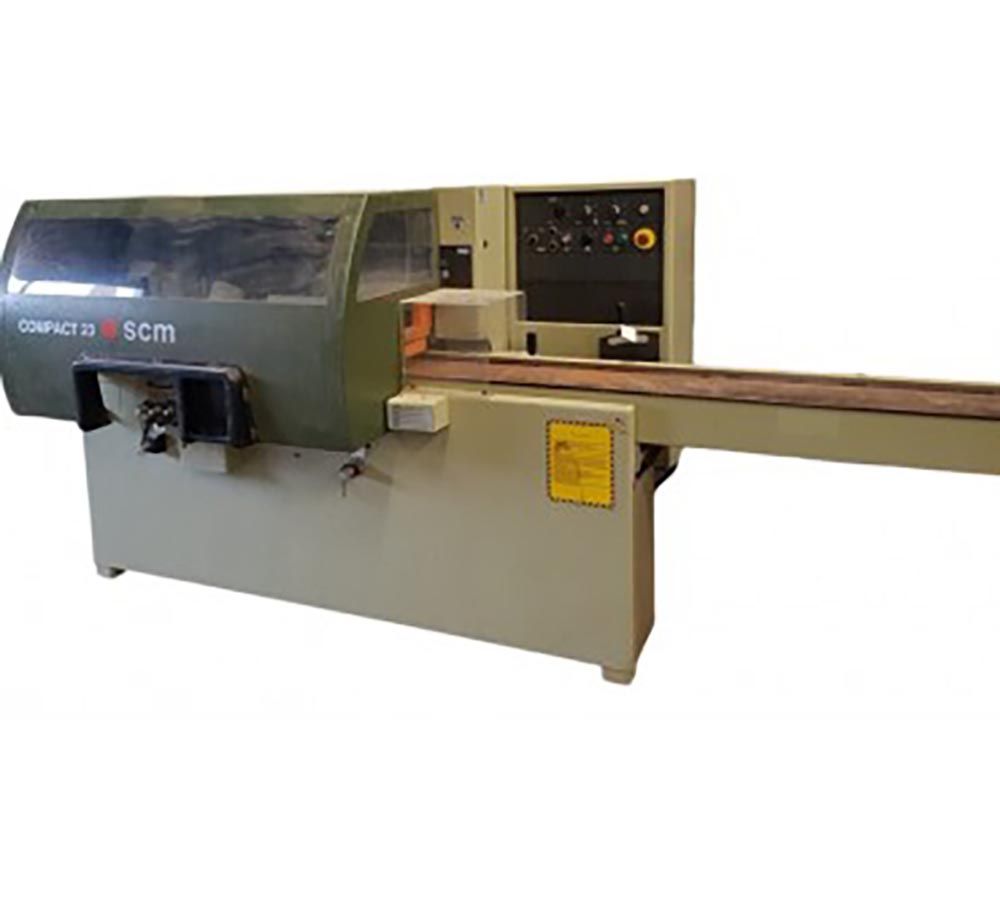

SCM COMPACT 23

4-SIDED PLANER AND MOULDER WITH 4 TOOL HOLDERS
MAKING CAPACITIES:
- 4-sided planer and moulder
- Maximum cross-section to be worked: 235 x 135 mm
- Finished wood cross-section: 230 x 130 mm
- Maximum tool height on the router: 140 mm
- Minimum/maximum tool diameter on the routers: 100/180 mm
- Maximum tool penetration depth into the wood: 40 mm
- Tools supplied with the machine:
Horizontal tool holders, length 230 mm, diameter 125 mm
Helical vertical tool holders, 120 mm high, 125 mm diameter.
- Spindle rotation speed: 6000 rpm
- Adjustable feed rates with SIKO-type counters
- Machine for all types of woodworking on dry wood.

COMPOSITION OF THE 4-SIDED MACHINE:
- Machined and ground steel infeed table, length: 2 m.
- 4 tool holders:
1) Planer spindle, 4 kW (6 hp) brake motor
2) Right-hand vertical spindle
3) Left-hand vertical spindle
Brake motor for both spindles: 5.5 kW (7.5 hp)
4) Upper horizontal spindle, 4 kW (6 hp) brake motor

- Robust, welded frame, table height from the ground: 930 mm. - Secure, panoramic, soundproofing enclosure with gas struts.
- Raised control panel and operator face.
- Precision adjustment of each operation using handwheels.
- Mechanical digital counters (Siko type).
- Side roller inlet pressure plate.
- Adjustable pressure shoe at the outlet.
- Pass-in indicators.

DRIVE:
- 2-speed geared motor feed.
3.1 A I.N. drive motor
Cardan shaft drive.
- Notched steel metal rollers with adjustable pressure via springs.
- Motorized upper and lower vulcanized rollers at the outlet.

OTHER FEATURES:
- Main power supply: 400V, 3-phase + Earth, 50 Hz
- Installed power: approximately 18 kW (please specify)
- Brake motors on all 4 shafts. - Beam lift/lower motor for thickness adjustment: kW
- Axial adjustment of vertical shafts: mm
- Axial adjustment of horizontal shafts: mm
- Shaft diameter: Ø 40 mm

SUCTION:
- Suction inlets: 3 x Ø 120 & 1 x Ø 150 mm
- Recommended flow rate: m3/h. Minimum speed: 30 m/sec on each intake inlet.

SAFETY:
- CE marking, padlockable disconnect switch, mushroom stops, etc.
- Enveloping enclosure with controlled electro-locking.
- No access to tools or rotating parts during operation.

Dimensions: 3.30 m x 1.50 m x h. 1.60 m
Weight: 1570 kg
