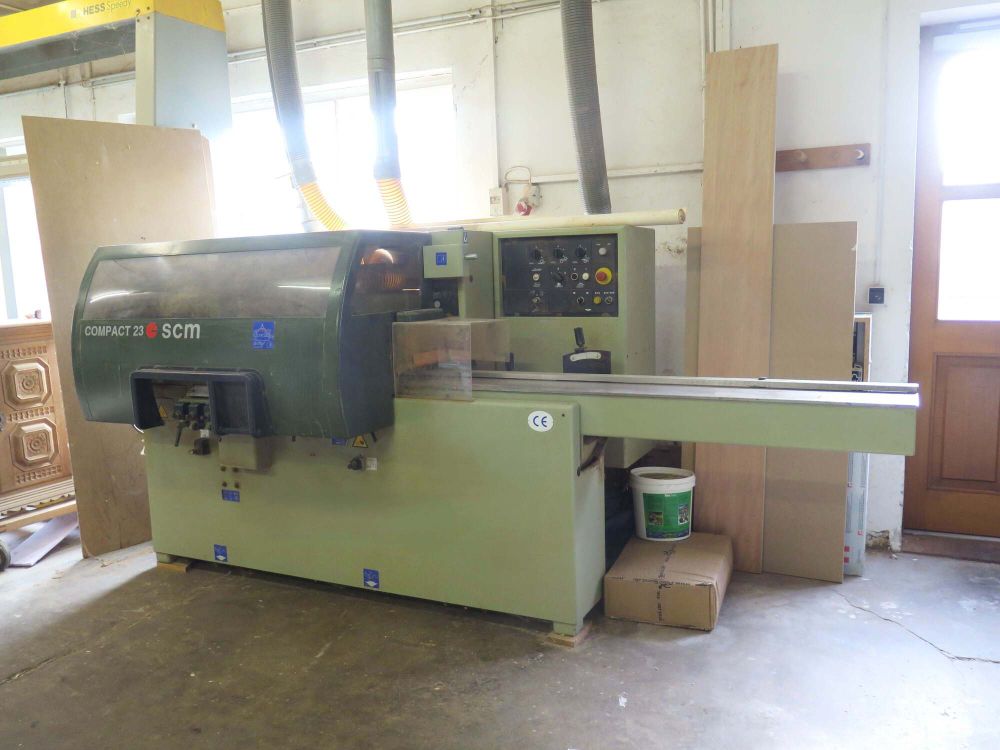

SCM COMPACT 23K
Ref :
2788499-15-MT
Condition :
Used
Manufacturer :
SCM
Model :
COMPACT 23K
Year(s) :
1997
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Four-sided planer
Working width 230 mm
Working height 120 mm
4 cutterheads equipped with cutter heads
Spindle diameter 40 mm
Feed speeds 6/12 m/min
Spindle speed 6000 rpm
Clamping length vertical spindles 140 mm
Clamping length horizontal spindles 253 mm
Infeed table length 2000 mm
Spindle arrangement
Bottom / Right / Left / Top
Cutter heads with glazing bead separation
Includes Tersa cutter heads
Motor power approx.
Bottom 5.5 kW / Right and Left combined 7.5 kW / Bottom 5.5 kW
Dimensions approx. 3300 mm x 1600 mm x H 1600 mm
Weight approx. 1200 kg
