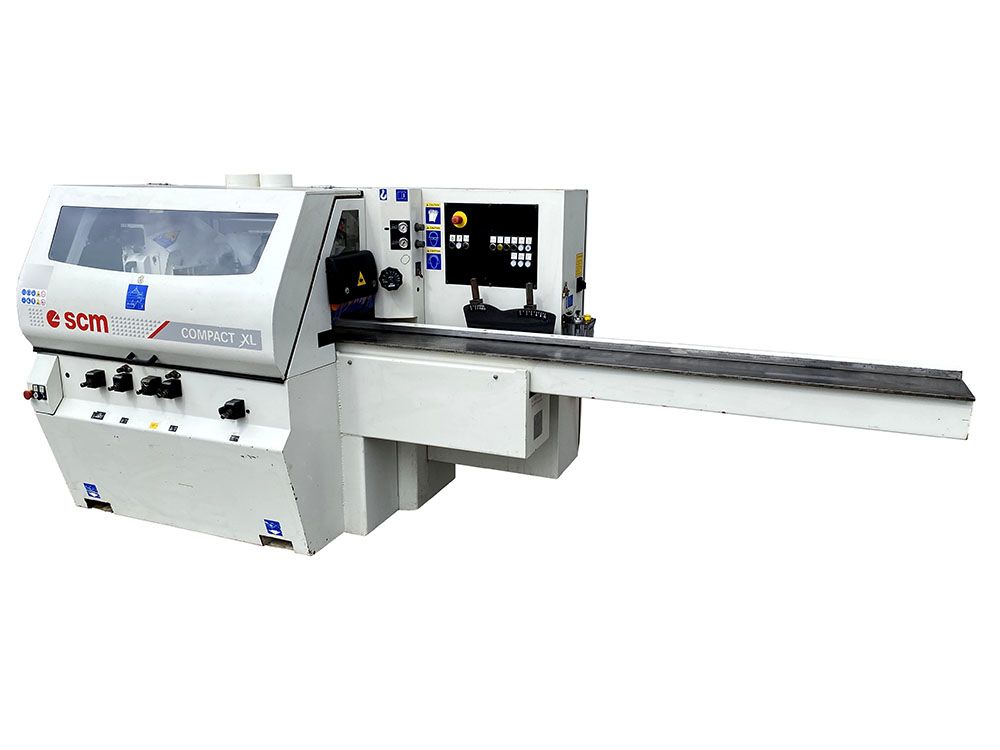

SCM Compact XL 230/120

Four-sided planer
Planing width 230 mm
Planing height 120 mm
1) Horizontal bottom 230 mm 5.5 kW
2) Vertical right 130 mm
3) Vertical left 130 mm (2nd and 3rd spindle) 11 kW
4) Horizontal top 230 mm 7.5 kW
All spindles adjustable up/down, right/left
Spindle diameter 40 mm
3 metal infeed and pulling rollers, torsionally adjustable, including 2 double rollers
Double rubber outfeed roller at the top
1 side pressure plate
Rubber pulling roller in the lower table
Feed on cardan shafts
Pneumatic pressure plates
Smooth feed speed adjustment 5-22 m/min
1.1 kW feed motor
Electric planing thickness adjustment
Lifting motor 0.37 kW
Infeed table length: 2470 mm
Spindle speed: 6000 rpm
Enclosed in a cabin
Central table lubrication
Exhaust port diameters: 150 and 180 mm
Dimensions (L/W/H): 3650 / 1200 / 1600 mm
Weight: approx. 1500 kg
