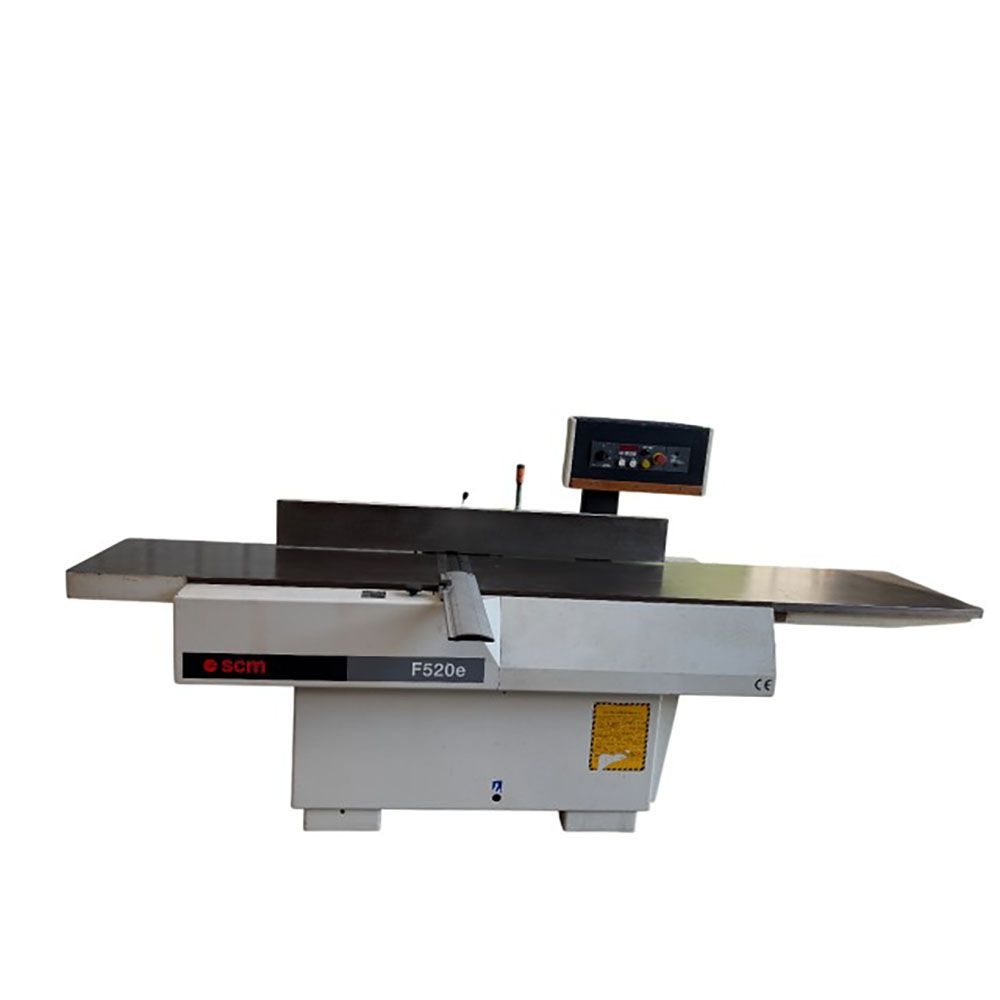

SCM F520E

ELECTRIC INLET TABLE ADJUSTMENT THICKNESS MACHINE
MAKING CAPACITIES:
- Useful working width: 520 mm
- Spindle speed: 5000 rpm
- Inlet table: 1770 x 550 mm
- Outlet table: 1180 x 550 mm
- Tilting fence on slide with indicator -45/45°
- Max. infeed: 8 mm

Mortiser option: parts already available (+€700 excluding VAT)
- Longitudinal travel (x): 120 mm
- Transverse travel (y): 200 mm
- Vertical travel (z): 125 mm
- Chuck Self-centering max. Ø16 mm
- Cast iron mortising table (LxW): 540x330 mm
2-axis lever-operated movement, height adjustable by handwheel with eccentric pressure plate

OTHER FEATURES:
- 400V main power supply. Three-phase 50 Hz
- Star-delta starting
- Installed power: 4 kW (5.5 hp) IN 9A
- 4-blade spindle: Ø120x520 mm
- Recommended knives: 520x35x3 mm
- Worktop height: 850 mm
- Extraction: Ø120 mm
- CE marked, padlockable disconnect switch, mushroom stop
Dimensions (LxWxH): 3000x1500xh.1500 mm
Weight: 950 kg
